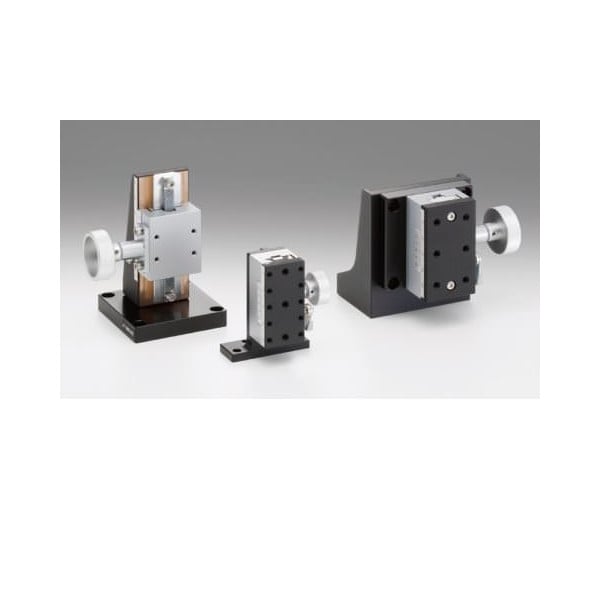

Z axis Rack and Pinion Dovetail Stages

SKU #TARW-25503L
Z axis Rack and Pinion Dovetail Stages (Vertical)
Request Quote
Request current lead time
Part Number
TARW-25503L



Z axis Rack and Pinion Dovetail Stages (Vertical)



Table size  25x50 mm
Travel  +/- 10 mm
Resolution  0.1 mm
Bearing type  dovetail method
Primary material  brass
Finish  super black chrome
Load capacity  9.8 N
Travel accuracy  30 um
Weight  0.3 kg
More Information
Manufacturer OptoSigma
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
