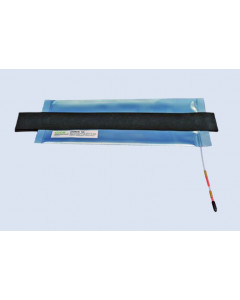

Wolf QAK/V Swelling-Tape Coated Sealing Cushion

Features

• Cable retrofitting without having to remove the sealing system
• Long-lasting (> 20 years) due to reduced total leak rate [1.5 to 2.7 mbarl/ year]
• Reusable four times imple to handle, quick installation and removal (approx. 4 min).
• No damage to ducts or cables
• Only 2 component parts
• Independent of the number and diameter of cables already laid

Description

The QAK/V is a further development of the T-Com-approved ADE/V sealing system, suitable for applications with specially demanding temperature requirements.

The sealing element is inserted into the cable channel or service entry etc. and inflated up to the pressure given in WO 05-3 via the tyre valve. Inflation is with air (CO2-neutral) and therefore environmentally friendly.

On inflation, the sealing element expands to fill the area to be sealed. The element can be removed by simply deflating it via the valve.

Specially developed materials prevent permanent adhesion of the element to its surroundings, guaranteeing fast, easy removal.

The future of sealing for cable connections; tested on the basis of standards DIN 18195-1,18195-5 and 18195-6: August 2000

Available for sealing Ø 60 mm to 500 mm

Temperature range -30°C to +45°C (+70°C for a short period)
