SKU # 174015  |  MFR # QL-U

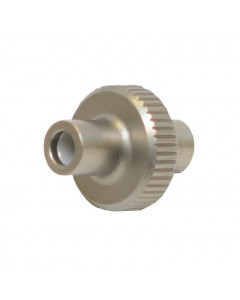

Universal 2.5mm Mating Adapter

More Views

Quick Overview

Universal 2.5mm Mating Adapter, Zirconia Sleeve, links ST, FC, SC, DIN & E2000 in any combination

Manufacturer

Fiber Plus

Series

QuickLINK Universal Adapters

Availability: Ships in 15 to 20 Business Days

Pickup: Check with team.

Excl. Tax: AU$51.55 Incl. Tax: AU$56.71

Availability: Ships in 15 to 20 Business Days

Description

Features

  • 2.5mm and 1.25mm versions
  • No key locking, screwing or snapping - Simply push the connector ferrules in and out
  • Zirconia sleeve applies tension to hold ferrules secure
  • Can be disassembled for cleaning
  • Accepts Singlemode and Multimode connectors



Description

The patented QuickLINK® Universal Adapter (Mating Sleeve) is designed to unite fiber optic connectors, cable assemblies and jumper cables together for test and measurement, emergency restoration and experimental purposes. Also a useful device to mate connectors with 2.5mm ferrules to Inspection Scope probes.

Available for 2.5mm and 1.25mm ferrules, the QL-U will link together ST, FC, SC, DIN and E2000 connectors styles or any 2.5mm ferrules in any combination. The QL-125 will link LC and MU connector styles with 1.25mm ferrules together in any combination.

The Universal feature eliminates the need to purchase a variety of mating sleeves, bulkheads or hybrid adapters. The QL-U (for 2.5mm ferrules) will link FC to FC, ST to ST, SC to SC, FC to ST, FC to SC, FC to DIN, FC to E2000, ST to SC, ST to DIN, ST to E2000, SC to DIN and SC to E2000. The QL-125 (for 1.25mm ferrules) will link MU to MU, LC to LC and MU to LC.



Specification

QL-U
Dimensions Length .48”, Diameter .38"
Sleeve Zirconia
Weight .09 oz.
Material Stainless Steel
Operating Temp. -20° to +60° C
Withdrawl Force 200gf - 600gf
Insertion Loss <0.3dB/km typical, <0.5dB/km max
Durability Deviation of no greater than 0.02dB after 1000 matings
Optical Loss Max 0.5dB



QL-125
Dimensions Length .35”, Diameter .30"
Sleeve Zirconia
Weight .04 oz.
Material Stainless Steel
Operating Temp. -20° to +60° C
Withdrawl Force 100gf - 300gf
Insertion Loss <0.3dB/km typical, <0.5dB/km max
Durability Deviation of no greater than 0.02dB after 1000 matings
Optical Loss Max 0.5dB



Details

Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
