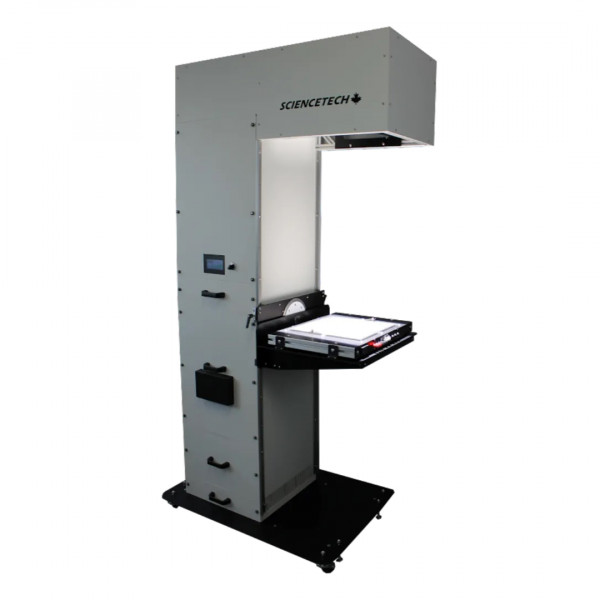

Sciencetech UHE Solar Simulators - NS and NL-Series

SKU #UHE-NX-XX
The UHE-NS/NL family of solar simulators are feature rich, convenient integrated systems suitable for a variety of research and testing requiring a stable and reliable uniform light source.
Request Quote
Request current lead time
Part Number
UHE-NX-XX

Features

  • Industry Leading Efficiency
  • Class AAA
  • Turn-key Operation
  • Suitable for larger target areas
  • Electronic shutter control
  • Includes AM1.5G Filter
  • Vertical with option for horizontal operation

Applications

  • Photovoltaic Testing
  • Material Characterization and Degradation Testing
  • Photochemistry
  • Accelerated Age Testing

Summary

The UHE-NS and UHE-NL solar simulator series are class AAA and have turn key operation system. Due to their very high efficiency these can be used for larger target areas and larger distances.

The UHE-NS/NL family of solar simulators are feature rich, convenient integrated systems suitable for a variety of research and testing requiring a stable and reliable uniform light source. UHE-NL series solar simulators can produce 1 Sun or more solar irradiance at a variety of solar spectral classifications (with an appropriate AM filter).

All of the electronics are contained inside the UHE-NL system to reduce clutter. With the UHE-NL all of the simulator functions can be controlled from a single touch screen interface or from the provided Sciencetech Power Control software.

Control Unit and Software

Sciencetech's UHE-NS and UHE-NL solar simulators are controlled from a single touch screen interface control unit. Standard features of the control unit are:

  • Touchscreen interface
  • Shutter and exposure control (200ms closing/opening time)
  • Lamp starts and timer log
  • Forced air cooling safety interlock
  • RS232 communication
  • Power Control software with graphical user interface included
  • Single power line connection for lamp power, cooling, and communication
Control Unit and Software

This shutter can be used with any high powered light source and can effectively block a 4" diameter beam. This device is computer controlled through Sciencetech's line of Touch Screen power supplies.

Software Included

UHE systems come with SciLampPower Control. Additional Software Packages are available for purchase to integrate the UHE into a custom solution.

SciAX - provides ActiveX control modules with HTA examples (LabView example files available with additional purchase)

SciencetechCOM - provides C++ and Python libraries and example files.

More Information
Manufacturer Sciencetech
Product Series Sciencetech UHE Solar Simulators
Product Type Solar Simulators
Size / Operation Benchtop
Industry Aerospace and Defence, Medical, Photonics, Research
Applications IV Characterization, Photovoltaic Testing, Spectral Response, External and Internal Quantum Efficiency
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
