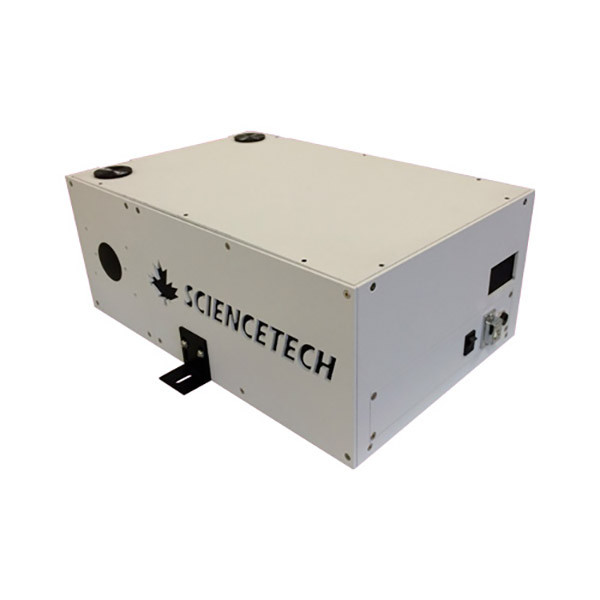

Sciencetech Standard Series Monochromators - Models 9055, 9057

Features

• Highly customizable modular design
• Two configurable input and output ports
• Interchangeable turret design to allow more than three grating options
• Configurable turret and grating options
• USB2.0 communication
• Fully integrated software and development libraries available
• Full line of input and output accessories

Applications

• Tunable monochromatic light source
• Spectroscopic systems
• Emission and source characterization
• Absorbance, transmittance and reflectance measurement
• High dispersion or high-power density spectral illumination system
• Electrochemical spectroscopy
• Fluorescence spectroscopy
• Scanning spectrophotometry
• Raman spectroscopy

Introduction

The Sciencetech standard series monochromators provide a flexible and customizable option with full functionality, including motorized wavelength control and a multiple grating turret. The design features an asymmetric Czerny-Turner optical layout, utilizing up to three plane-ruled gratings with an f/3.5 aperture. An adjustable slit is included for the input port, and additional slit options and accessories are available. For applications that require improved signal-to-noise ratios, reduced stray light, and better resolution than the standard model, a double monochromator (9055DX) in double additive mode is offered. For applications needing a tunable bandpass or notch filter light source, the double subtractive mode is an ideal choice.
