Sciencetech Research Grade Xenon Arc Lamp Sources Low/Med Power 75W - 300W

Features

• Vertical or horizontal bulb and housing operation

• Xenon arc lamps from 75W to 300W

• Multiple collimated or focused out-put optics in various sizes, materials, and coatings

• User-friendly design

• Numerous available accessories

• Standard safety interlocks

Applications

• Coatings Durability Testing
• Photobiology
• Photochemistry
• Spectroscopy

Introduction

Sciencetech offers a selection of arc lamp sources for research applications. Short arc lamps are high-pressure discharge lamps that are particularly suitable for optical applications due to their high radiance and luminance. Light is produced by a discharge arc that burns freely between two electrodes. The length of the arc is determined by the distance between the electrodes, typically just a few millimeters, making arc lamps an ideal point source of light.

This brochure focuses on Sciencetech’s xenon arc lamp sources, which have lamp envelopes filled with high-pressure xenon gas, providing a wide range of illumination wavelengths. You can either choose from one of our convenient packages on page 4 (which include optics, housing, bulb, power supply, and all interconnections) or build your own using our modular components for a perfect fit.

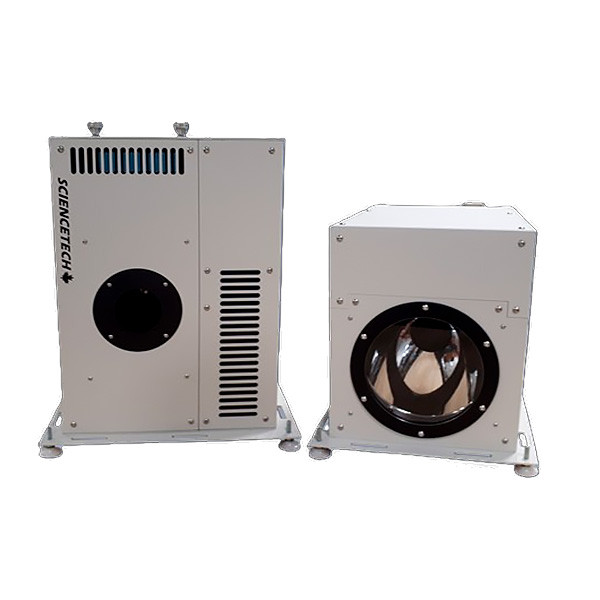

These lamp houses are designed to operate in either vertical or horizontal mode and come with base plates for both orientations. In the configuration section below, select the housing based on the reflector type (spherical for collimated output, elliptical for focused beam) and the desired arc lamp, then add the compatible power supply. Finally, include optics suitable for your application. For some pre-configured packages, see the attached brochure.
