OST RuggedNet GHPoE/SI 60W SC MM 4X 10/100/1000T - 2X 1000X 2KM DC

Omnitron Systems RuggedNet Unmanaged Industrial Gigabit High Power 60W PoE, MM SC, RJ-45, Ethernet Fibre Switch - 4 x 10/100/1000BASE-T, 1 x 1000BASE-X, 2xDC Power, 5 Year Warranty

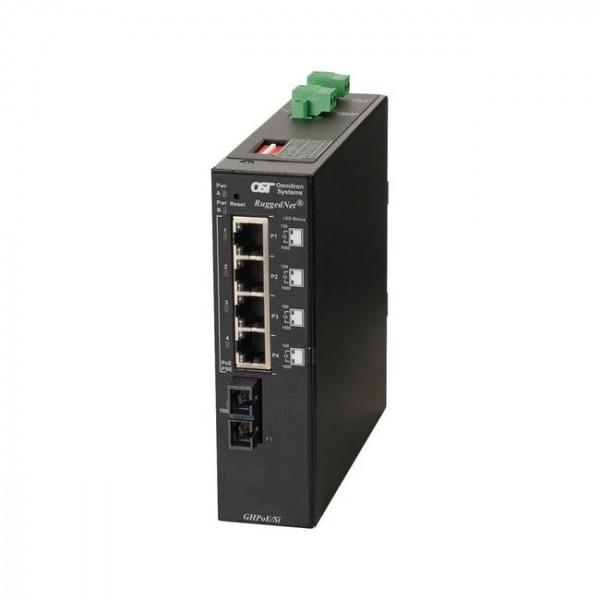

The RuggedNet GHPoE/Si is an industrial ruggedized and temperature-hardened unmanaged Ethernet switch that enables network distance extension with fibre cabling and provides full HPoE (60W) power simultaneously to all RJ-45 ports. The RuggedNet GHPoE/Si switch features one or two 1000BASE-X Gigabit fibre ports and four 10/100/1000BASE-T RJ-45 Power Sourcing Power-over-Ethernet ports. In typical applications, the GHPoE/Si provides PoE, PoE+, and HPoE per RJ-45 port for outdoor pan-tilt-zoom cameras with heaters and blowers, and multi-stream wireless access points.

The RuggedNet GHPoE/Si is a Layer 2 Ethernet switch that can be configured in Directed Switch mode. As a Layer 2 Ethernet switch, frames are forwarded to any port based on their MAC address. In Directed Switch mode, multicast traffic (such as video) is directed only to the appropriate fibre port, preventing the flooding of copper ports.

Models with two fibre ports support Dual Device Mode that enables the GHPoE/Si to operate as two independent and isolated switches. Models with two fibre ports also support redundant fibre uplinks for critical applications that require protection and sub-50ms restoration in the event of a fibre failure. The second fibre port may also be used to daisychain multiple RuggedNet PoE fibre switches, or it may be used as another switch port.

The RuggedNet GHPoE/Si is available with fixed ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver ports. Fibre ports support multimode or single-mode and dual fibre or single-fibre with distances up to 140 km. SFPs support a variety of distances in standard and CWDM wavelengths.

The GHPoE/Si automatically negotiates and delivers the power level required by a Powered Device (PD). When negotiating to PoE (IEEE 802.3af) it delivers up to 15.4 Watts per RJ-45 port. When negotiating to PoE+ (IEEE 802.3at) it delivers up to 30 Watts per RJ-45 port. To support high powered devices, each port can be configured to deliver up to 60 Watts of power.

The GHPoE/Si features a remote PoE power reset function that can be configured with a DIP-switch. This feature allows all PDs to be power-cycled and reset remotely to save time and expense by eliminating the need to dispatch manpower to remote network sites.

The compact RuggedNet Ethernet switches can be DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power via 2-Pin terminal connectors.
