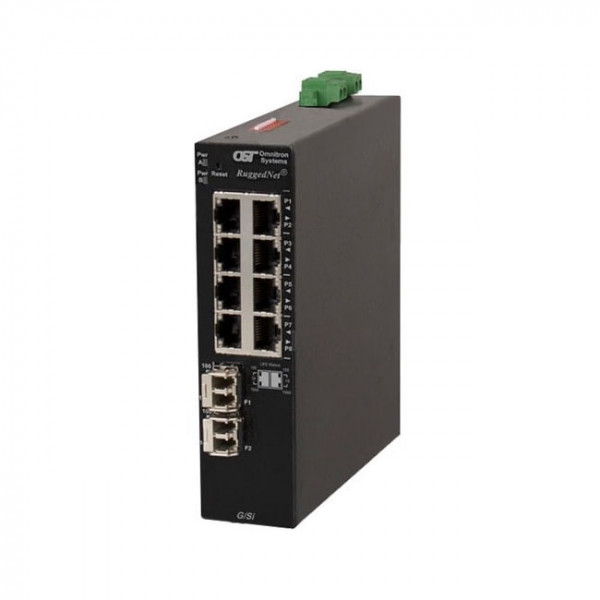

OST RuggedNet G/SI ST SM 12KM 1310 8X 10/100/1000T 1000X 2X DC Ext

Omnitron Systems RuggedNet Unmanaged Ruggedized Industrial Gigabit, SM ST, RJ-45, Ethernet Fibre Switch - 8 x 10/100/1000BASE-T, 1 x 1000BASE-X, 2xDC Power, 5 Year Warranty

The RuggedNet G/Si is an unmanaged ruggedized Industrial Ethernet gigabit fibre switch that features one or two Gigabit fibre ports and four or eight 10/100/1000 RJ-45 copper ports. The RuggedNet G/Si enables industrial network distance extension with fibre cabling.

The RuggedNet G/Si is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The RuggedNet G/Si supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate fibre port, preventing the multicast video traffic from flooding other network ports.

Models with two fibre ports support redundant fibre uplinks for critical applications that require protection and sub 50ms restoration in the event of a fibre failure. The second fibre port may also be used to daisy-chain multiple Ethernet switches, or it may be used as another switch port.

Models with two fibre ports also support Dual Device mode that enables the G/Si to operate as two independent and isolated Ethernet switches. In Dual Device mode, the G/Si provides separate and independent data traffic paths between the two fibre links and four or eight RJ-45 ports.

The RuggedNet G/Si modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the top of the RuggedNet for ease of identification and use.

The RuggedNet G/Si is available with fixed ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fibre ports support multimode or single-mode and dual fibre or single-fibre with distances up to 140 km. SFP models support a variety of distances in standard and CWDM wavelengths.

The compact RuggedNet Ethernet switches can be wall mounted with an optional wall mount bracket or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.
