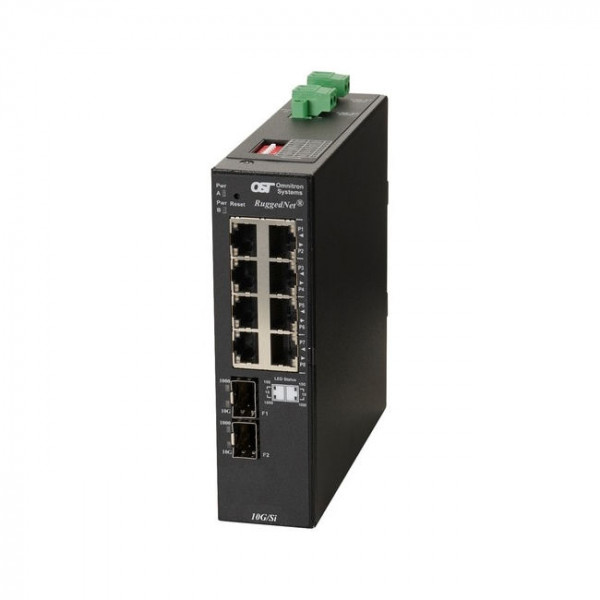

OST RuggedNet 10G/SI Switch DC 2X1G/10G SFP+ to 8X 10/100/1000T
SKU #2903-0-28-2Z
Omnitron RuggedNet 10G/Si, 2xSFP/SFP+, 8xRJ-45, 2xDC Powered Industrial Temp - 10 Ports - 2 Layer Supported - Modular - Optical Fibre, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable - 5 Year Limited Warranty
Typically Ships in 15 to 20 Business Days
Part Number
2903-0-28-2Z
Omnitron Systems RuggedNet 10G/Si , 2xSFP/SFP+, 8xRJ-45, 2xDC Powered Industrial Temp - 10 Ports - 2 Layer Supported - Modular - Optical Fibre, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable - 5 Year Limited Warranty
The RuggedNet 10G/Si is a ruggedized unmanaged industrial Ethernet switch that features two 1/10G uplink ports and four 10/100/1000 RJ-45 copper user ports. The RuggedNet 10G/Si enables industrial network distance extension with fibre cabling.The RuggedNet 10G/Si is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.
All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.
The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.
The switches support Dual Device mode that enables the 10G/Si to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10G/Si provides separate and independent data traffic paths between each uplink port and a group of user ports.
The 10G/Si modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the RuggedNet for ease of identification and use.
The RuggedNet switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fibre, dual or single-fibre and standard or CWDM wavelengths.
The RuggedNet compact industrial Ethernet switches can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.
Features
- DC power source for dependable power supply
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Quickly and easily set up a wired network with 10 networking ports
- Effectively reduces downtime with improved network performance
- Terminal Block (2 Wire) plug/connector type for a secure, hassle-free operation
Management & Protocols
| Manageable | No |
Network & Communication
| Layer Supported | 2 |
I/O Expansions
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
Power Description
| Power Source | DC |
| Plug/Connector Type | Terminal Block (2 Wire) |
| PoE (RJ-45) Port | Yes |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| 2 x 10 Gigabit Ethernet Expansion Slot |
Media & Performance
| Network Technology | 1000Base-LX/SX |
| 1000Base-LX10 | |
| 1000Base-SX | |
| 1000Base-SX/LX | |
| 1000Base-X | |
| 1000Base-ZX | |
| 10GBase-ER | |
| 10GBase-LR | |
| 10GBase-LRM | |
| 10GBase-SR | |
| 10GBase-ZR | |
| 1000Base-LX | |
| 1000Base-LX/LH | |
| 1000Base-BX10-U | |
| 1000Base-BX10-D | |
| 1000Base-BX-U | |
| 1000Base-BX-D | |
| 1000Base-BX | |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fibre |
Miscellaneous
| Additional Information | Operating Temperature Range: -40 to +75 deg C |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) |
Physical Characteristics
| Weight (Approximate) | 1.77 lb |
| Form Factor | Wall Mountable |
| Shelf Mountable | |
| DIN Rail Mountable | |
| Rack-mountable | |
| Height | 5.5" |
| Width | 1.5" |
| Depth | 5.5" |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2903-0-28-2Z |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 2903-0-28-2Z |
| Product Name | RuggedNet 10G/Si , 2xSFP/SFP+, 8xRJ-45, 2xDC Powered Industrial Temp |
| Package Type | Retail |
| Product Line | RuggedNet |
| Product Series | 10G/Si |
| Brand Name | Omnitron Systems |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046054 |
| Product Series | Omnitron Systems RuggedNet Industrial Ethernet Switches |
| Product Type | Ethernet Switches |
| Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
