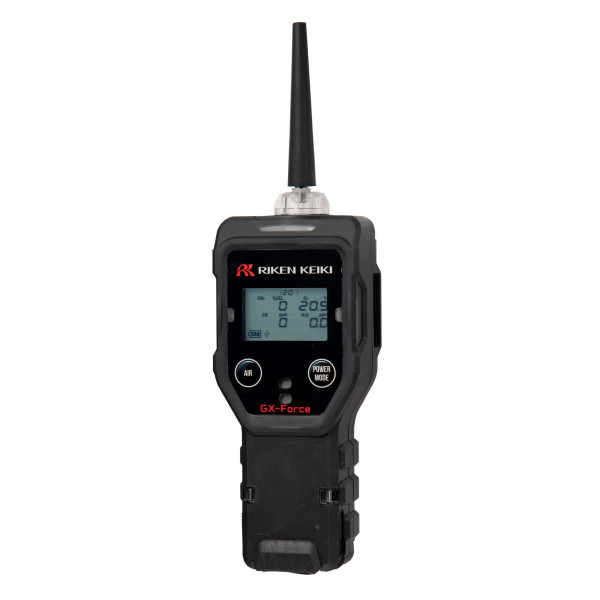

RKI GX Force Portable 4 Gas Detector with Integrated Sample Pump

SKU #103214
The GX-Force 4 gas (LEL / O2 / combo H2S & CO) detector features an integrated pump for drawing sample gas prior to entry. Rugged drop and dust proof body. Weighs just 280g. Long 30-hour battery life. A 3-Year sensor warranty.
AU$1,325.00 AU$1,457.50
Request current lead time
Part Number
103214

Features

  • Monitors standard confined space gases (LEL combustibles, Oxygen, Carbon Monoxide, and Hydrogen Sulphide)
  • Two operating modes - Normal and Leak Check
  • Internal sample pump
  • Easy-to-grip lightweight design, weighs approx. 280 g
  • Long 3-Year sensor warranty
  • 30 hour continuous operating time
  • Intrinsically safe explosion-proof construction, flame-proof enclosure
  • Passes 3m drop testing with dust protection rating equivalent to IP67
  • USB Type-C charging and data connection
  • Field replaceable sensors and filters

Applications

  • Personal monitoring
  • Confined spaces
  • Refineries/petrochemical
  • Utilities
  • Oil and Gas
  • Water/wastewater
  • Fire services
  • Construction

Description

The GX-Force can detect flammable gases, Oxygen and toxic gases (Carbon monoxide and Hydrogen sulphide), quickly and reliably using built-in pump aspiration. The CO/H2S dual sensor enables the number of sensors to be reduced from four to three, and the dimensions and weight have been downsized (approx. 280 g (-22% compared to the previous version)), leading to lower cost and ease of use.

The GX-Force can be used for confined space, safety monitoring in its Normal Operating mode. A Leak Check mode is the solution for all leak investigations. The GX-Force can monitor the standard confined space gases (LEL combustibles, Oxygen content, Carbon Monoxide, and Hydrogen Sulphide). Built around high-quality micro-sensor technology, which are compatible with the GX-3R, GX-3R Pro, 04 Series, and Gaswatch 3 instruments.

In Leak Check Mode, the GX-Force, can monitor for combustibles in the ppm range.

The GX-Force's large LCD display shows all gas readings, battery level, current time, and will automatically backlight in alarm conditions. Standard alarm types include vibration, visual, and audible alarms, which can be set to latching or non-latching. Controlled by a microprocessor, the GX-Force continuously checks itself for sensor connections, low battery, circuit trouble, low flow, and calibration errors.


Technical Specifications

Detection target gas

Combustible gas
(CH4 or HC)

Oxygen
(O2)

Carbon monoxide
(CO)

Hydrogen sulfide
(H2S)

Detection principle

Catalytic combustion

Electrochemical type

Detection range

0 – 100 % LEL

0.0 – 40.0 vol %

0 – 2,000 ppm

0.0 – 200.0 ppm

Resolution

1 % LEL

0.1 vol %

1 ppm

0.1 ppm

Alarm setpoints

(User-defined setting)

1st alarm: 10 % LEL

2nd alarm: 25 % LEL

3rd alarm: 50 % LEL

OVER alarm: 100 % LEL

L alarm: 19.5 vol %

LL alarm: 18.0 vol %

H alarm: 23.5 vol %

OVER alarm: 40.0 vol %

1st alarm: 25 ppm

2nd alarm: 50 ppm

3rd alarm: 1200 ppm

TWA alarm: 25 ppm

STEL alarm: 200 ppm

OVER alarm: 2,000 ppm

1st alarm: 5.0 ppm

2nd alarm: 30.0 ppm

3rd alarm: 100.0 ppm

TWA alarm: 1.0 ppm

STEL alarm: 5.0 ppm

OVER alarm: 200.0 ppm

Response time (T90)

CH4: Within 30 seconds,

HC: Within 40 seconds

Within 20 seconds

Within 30 seconds

Within 30 seconds

More Information
Manufacturer Riken Keiki (RKI)
Product Series RKI GX Force Series Portable Gas Detector with Integral Pump
Product Type Gas Monitors
Size / Operation Handheld, Pocket-sized, Rugged
Battery Capacity 30 hours approx.
Case Included Available Seperately
Protection Level Dust-Proof, Ruggedised, IP67 Waterproof
Device Connectivity via USB
Gas Type Carbon Monoxide (CO), Hydrogen Sulphide (H2S), LEL, Oxygen (O2)
Industry Installers and Contractors (OSP), Telecommunications, Mining, Off-shore and Remote, Transportation, Utilities
Applications Access Construction (Underground, Aerial), Drop Construction (Aerial, Underground), Long-haul installation, OSP (Out Side Plant), NBN (National Broadband Network), Personal Gas Detection Monitors, Coherent communications, Testing of high speed optical receivers, Installers and Telco Contractors
Operating Temp. (Min) -40°C
Operating Temp. (Max) 60°C
Temperature Range. Wide Range
Recommended Calibration Interval 6 months
Warranty 3 Years
Warranty Notes AusOptic Genuine Product Guarantee
