Simultaneous Detection of Multiple Gas Types
This single unit eliminates the need for multiple gas detectors and detector tubes. It covers a wide range of gases for acid deficiency and explosion prevention, as well as various toxic gas sensors to prevent poisoning. With over 1000 sensor combinations, it provides comprehensive gas detection capabilities.
Sensor Warranty up to 3 Years
The GX-9000 Series features a group of highly durable and high-performance sensors with a warranty of up to 3 years, ensuring long-lasting reliability.
Excellent Durability
The instrument is explosion-proof, dust-proof, and waterproof (equivalent to IP66/68). It can withstand a 1.5-meter drop, making it highly resilient in demanding environments.
Easy Data Management with Smartphones
Equipped with Bluetooth® and a dedicated application called "RK Link," the GX-9000 Series allows users to connect to smartphones and tablets. This feature enables the transmission of alarm notifications via email and one-touch saving of measurement data. Additionally, the product includes a snap log button for convenient data management.

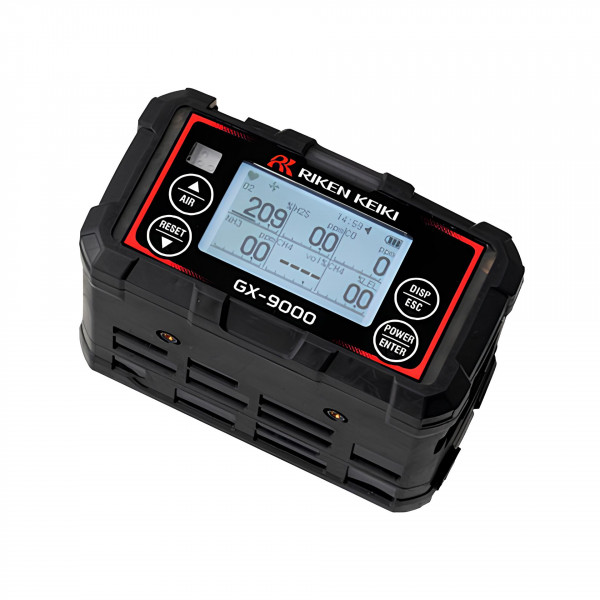

The GX-9000 is the next generation of the GX/RX-8000 Series of gas detectors, which have provided reliable safety monitoring for over a decade in diverse environments - at sea, on land, and underground.
The GX-9000 is capable of simultaneously detecting up to six different gases, including ammonia and volatile organic compounds (VOCs). It combines stability and portability, with a high-power pump that enables effective gas aspiration from distances of up to 45 meters. This ensures comprehensive coverage and peace of mind, even when working in large enclosed spaces like tanks.
A single GX-9000 unit can address a wide range of gas detection requirements, making it one of the most versatile and effective gas detectors available today.
Target gas | C2H2, CH4, CL2, CO, CO2, H2, H2S, HCL, HCN, i-C4H10, NH3, O2, O3, SO2, VOC |
---|---|
Sampling method | Suction type |
Principle of detection | New Ceramic catalytic Method, Thermal Conductivity Method, Non-Dispersive Infrared Method, Potentiostatic Electrolysis Method, Photo-Ionization Detector |
Type of alarm | Gas alarm / fault alarm |
Display of alarm | Lamp blinking / buzzer / gas concentration display blinking |
IP rating | IP66/68 |
Approvals | Japan Ex, ATEX, IECEx, JIS |
CE marking | EMC / ATEX / RoHS |
Power source | Lithium ion battery unit or Dry battery unit (AA alkaline battery 6pcs.) |
Continuous operation | 25 hours (fully charged) |
Dimensions | Approx. 158 (W) × 85 (H) × 132 (D) mm |
Weight | 1.1 kg |
Operating temperature range | -40℃ ... 60℃ |
Manufacturer | Riken Keiki (RKI) |
---|---|
Product Series | RKI GX-9000 Series 6 Gas Monitor |
Product Type | Gas Monitors |
Size / Operation | Handheld, Pocket-sized, Rugged |
Protection Level | Harsh environments, Ruggedised, IP65 Dust-Proof, IP67 Waterproof |
Device Connectivity via | USB |
Gas Type | Methane (CH4), Ammonia (NH3), Carbon Monoxide (CO), Chlorine (Cl2), Hydrogen Cyanide (HCN), Hydrogen Sulphide (H2S), LEL, Nitrogen Dioxide (NO2), Oxygen (O2), Phosphine (PH3), Sulphur Dioxide (SO2) |
Industry | Installers and Contractors (OSP), Telecommunications, Mining, Off-shore and Remote, Transportation, Utilities |
Applications | Drop Construction (Aerial, Underground), Long-haul installation, OSP (Out Side Plant), Personal Gas Detection Monitors, Coherent communications, Testing of high speed optical receivers, Mining, Oil and Gas, Installers and Telco Contractors |
Operating Temp. (Min) | -20°C |
Operating Temp. (Max) | 50°C |
Recommended Calibration Interval | 1 Year |
Standard Package Contains |
|
Warranty | 2 Years |
Warranty Notes | 2 years warranty on device (including sensors) and workmanship. 1 year warranty for PID sensor. |
