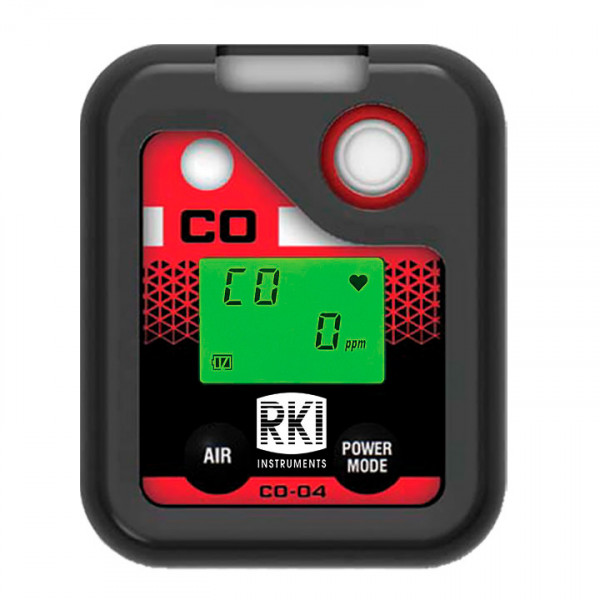

RKI CO-04C CO with H2 elimination Single Gas Monitor - Pocket Size - 73-0067

SKU #R73.0067RK | MFR #73-0067
Carbon monoxide gas monitor with reduced hydrogen interference. 3 year warranty. Approx. 6200 hours continuous operating time on 2x AAA batteries.
Request Quote
Request current lead time
Part Number
R73.0067RK

Features

  • CO with H2 elimination
  • Operates 4,600 hours on alkaline
  • Pocket size 2.1"(W) x 2.6"(H) x 0.9"(D)
  • Light weight 2.8 ounces
  • Impact, dust, and water resistant (IP-67)
  • Replaceable rubber boot
  • Data log 10 to 600 hours with adjustable intervals
  • Audible / visual / vibration alarms
  • Automatic backlight
  • Low battery alarm
  • Intrinsically safe, ATEX and C / US approvals
  • 3 year warranty on monitor body and sensor



Applications

  • Hazardous material
  • Mining Refineries / petrochemical
  • Water / wastewater treatment
  • Pharmaceuticals
  • Utilities
  • Chemical plants
  • Fire services



Description

The RKI CO-04 Series H2 compensated CO Single Gas Monitors are designed to operate for many years with field replaceable sensors and filters. With the protective rubber boot, the 04 Series passes 7 m drop resistence tests, and features an IP-67 rating for dust and water. The 04 Series is built for a long life of trouble-free operation.

Each version is also equipped with visual, audible, and vibration alarms as standard.

The replacement sensors are inexpensive, easily field replaceable, and are interchangeable with other popular RKI instruments like the GX-3R, GX-3R Pro, and GasWatch 3. Sensors have a life expectancy of over 3 years and backed by a 3 year warranty.

Each 04 Series monitor is impact, dust, and water resistant with an IP-67 rating. 04 Series instruments are safe for use in hazardous locations, classified as intrinsically safe ATEX/IECEx and by QPS to U.S. and Canadian standards for Class I, Division 1, Groups A, B, C, and D atmospheres.



Specifications:

  • Gas Detected: Carbon Monoxide
  • Detection principle: Electrochemical
  • Detection range: 0 ~ 2000 ppm (1 ppm)
  • Alarm set points: 1st 25 ppm, 2nd 50 ppm, 3rd 1200 ppm, TWA 25 ppm, STEL 200 ppm
  • Alarm types: Gas alarms: 1st, 2nd and 3rd (user adjustable), OVER alarm, STEL and TWA, Trouble alarms: Sensor connection, low battery, circuit failure, and calibration range error
  • Gas sampling: Diffusion
  • Response time: T90 in 30 seconds
  • Accuracy: < 300 ppm ± 5 % of reading, > 300 ppm ± 20 % of reading
  • Data logging: 10 second intervals = 5 hours, 5 minute intervals = 150 hours, 10 minute intervals =300 hours Instrument records alarms, alarm trends, gas readings, calibration & bump test history, instrument information and settings.
  • Continuous operation: Alkaline dry cell: 6,200 hours
  • Safety rating: ATEX/IECEx approved. QPS classified, “C / US”, as intrinsically safe, Class I, Division 1, Groups A, B, C, D
  • Enclosure: Dust and water resistant with IP-67 rating
  • Display: Digital LCD, gas name & concentration, auto backlighting during alarm, operation icon, battery icon



Please Note: Once activated, RKI Series 04 units cannot be shut down and will run continiously for their life span. This prohibits these items from being shipped because the alarm may be activated during transit. We can only accept returns of unactivated monitors.

More Information
Manufacturer Riken Keiki (RKI)
Manufacturer Part Number 73-0067
Product Series RKI 04 Series Pocket Size Gas Monitors
Product Type Gas Monitors
Size / Operation Pocket-sized
Protection Level Crush-Proof, Dust-Proof, Ruggedised, IP67 Waterproof
Device Connectivity via USB
Gas Type Carbon Monoxide (CO)
Industry Installers and Contractors (OSP), Telecommunications, Mining, Off-shore and Remote, Transportation, Utilities
Applications Long-haul installation, OSP (Out Side Plant), Coherent communications, Testing of high speed optical receivers, Installers and Telco Contractors
Operating Temp. (Min) -20°C
Operating Temp. (Max) 50°C
Standard Package Contains
  • Rubber protective boot
  • Alkaline batteries
  • Alligator clip
  • Data log software
Warranty 3 Years
Warranty Notes AusOptic Genuine Product Guarantee
