Cablematic QCST 750T-R Quick Change Coring/Stripping Tool - Green body

SKU #262349 | MFR #36903
Inverted clear Plexiglas® straight edged scraping blades. Removes dielectric close to aluminum sheath without scratching or nicking. Suited for all sizes of trunk and distribution cables.
  • Quick Change All-In-One for 750 cable
  • Accurately strips the jacket, cores out the dielectric and strips & bevels the aluminium sheath
  • New "Quick-Change" rotating body ring for attaching the jacket stripper to the coring body
  • Fitted with chamfered strip stop
  • Rugged, durable, all-metal construction
AU$477.38 AU$525.12
In Stock / Available for Dispatch
Part Number
262349

QCST

Quick Change Coring / Stripping Tool

  • ALL-IN-ONE, accurately strips the jacket, cores the dielectric, strips and bevels the aluminum sheath
  • NEW DESIGN conveniently attaches the jacket stripper body (QJST) to the main body of the coring and stripping tool using a “QUICK-CHANGE” rotating body ring
  • QJST color coded JACKET STRIPPING BODY is removed and used in a 2 STEP OPERATION WHEN USING FLOODED CABLES.
    STEP 1 – Remove the jacket with the removable QJST. STEP 2 – Remove flooding compound from cable and use the QCST coring and stripping tool body to complete the preparation
  • Jacket stripping body (QJST), when used separately to remove the jacket on flooded cable, is uniquely designed to automatically provide 3.50 in. (88.9 mm) of jacket removal when rotated to the end of the body
  • Jacket stripper body and coring / stripping tool guide sleeve are all COLOR CODED for easy cable identification
  • CHAMFERED STRIP STOP - a 1 in. (25.4 mm) stop - is factory installed.
  • Pre-set jacket blade assures no scoring or nicking of aluminum sheath
  • MANUAL or DRILL operation;
    QCST-R tools have a RATCHET “T” handle and a separate 3/8 in. (9.5 mm) drill adapter
  • Rugged, durable, ALL-METAL construction
  • Heat treated sheath cutting blade produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit
  • Spiral-fluted, heat treated steel bit

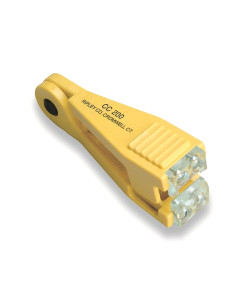

  • Use of CC-200EUR Center Conductor Cleaner / Scraper (SKU: 262347) removes residual dielectric which remains on the conductor after coring and stripping



Specifications

  • Made in the U.S.A
  •  Length: 8.1 in. (205.7 mm)
  •  Weight: 1 lb 4 oz (525 g)
More Information
Manufacturer Cablematic
Manufacturer Part Number 36903
Size / Operation Handheld
Industry Installers and Contractors (OSP), Telecommunications
Applications OSP (Out Side Plant), NBN (National Broadband Network), NBN: HFC (Hybrid Fiber Coaxial), Installers and Telco Contractors
Recommended Service Interval N/A
Standard Package Contains
Warranty Lifetime
Warranty Notes Ripley Company Lifetime Warranty is limited to the repair or replacement of any product which proves to be defective in material or workmanship, under normal use and service.
