THINKY: Planetary and Centrifugal Mixers
Successful dosing processes necessitate meticulous product preparation, and AusOptic is pleased to present the complete range of planetary mixers manufactured by THINKY.

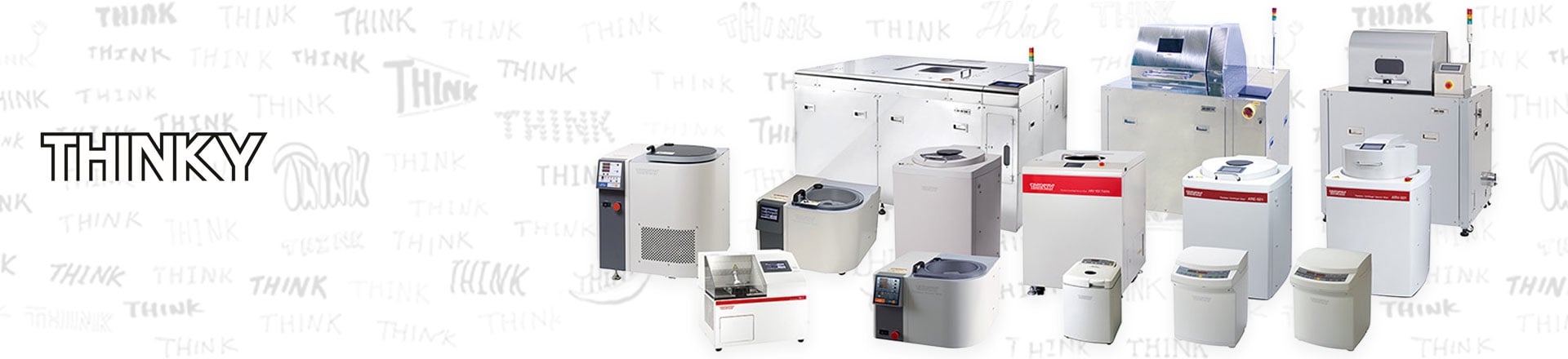

The THINKY Corporation’s ‘Thinky Mixer’ combines two rotations and a revolution to mix and degas materials simultaneously, revolutionising material processing. THINKY offers compact desktop units for labs and large models for mass production, showcasing its innovative technology and expertise in building a foundation for production environments.
Mix and degas your products

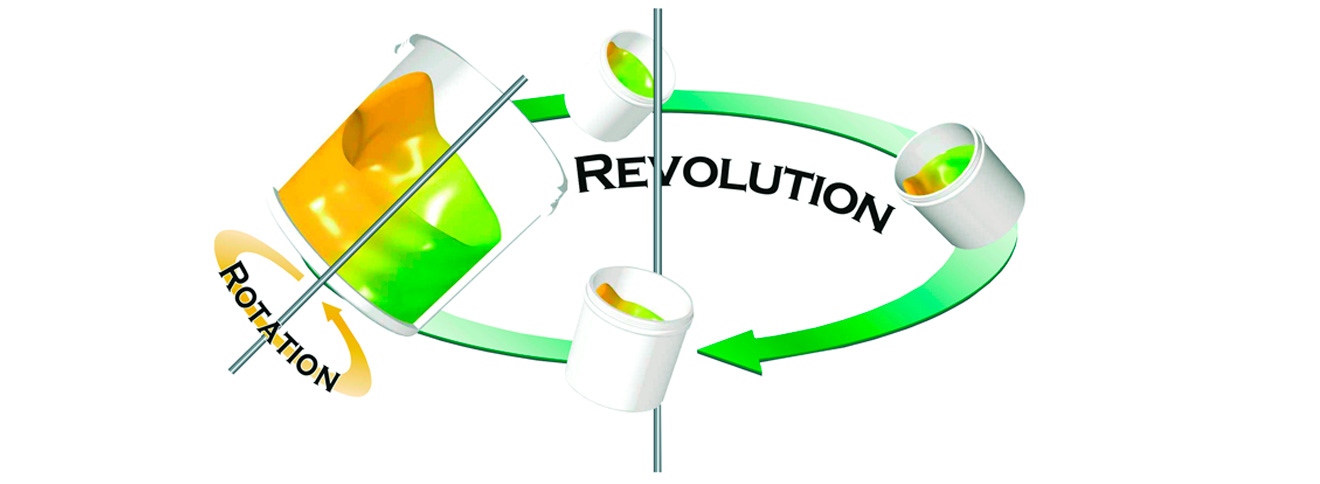

The principle of rotation / revolution, two powerful centrifugal forces orbit harmoniously and also rotate on their own axis. The deaeration phenomenon guarantees a bubble-free result.
Applications and manual mixing comparisons
Onguent (Zinc oxide and acrinol powder)
Yellow acrinol powders are uniformly dispersed to create a solid yellow colour cream with a smooth feel when applied.
Sealant for white LED
Fluorescent powders with a higher specific gravity are uniformly dispersed without sedimentation.
Silicone / Silicate
The fluorescent material is uniformly dispersed with no sedimentation throughout the low-viscosity silicone resin.
Polyimide
No bubbles. Uniformity mixed.
Cosmetic Foundation
Four types of materials are uniformly mixed to a smooth cream consistency.
Solder Paste
Smooth Surface. No bubbles.
Epoxy Resin and alumina powder
Two part resin and white alumina powder are uniformly mixed to a solid green colour.
Silicon resin and calcium carbonate
No lumps. Powders turn into a uniformly mixed paste.
Application Guide
| Applications | THINKY Mixer | Viscosity, Density, Particle Volume or Size |
||
| 1 | Ceramic (10 V%) | Dispersion Defoaming | ARE-250 2 minutes | Barium Titanate – 6.02g/cm3 Micron particle, 10 volume %, (Total 120g) |
| 2 | Nano Ceramic (70 V%) | Dispersion Defoaming | ARE-250 3 minutes | Aluminum oxide – 0.5µm Nano particle, 3.97g/cm3 50-70 volume % |
| 3 | 2 part Epoxy | Mixing Defoaming | ARE-250 20 seconds | Epoxy Part A: 3000-6000 poise Part B: 0.3-0.7 poise |
| 4 | Carbon Nano Fiber (10V%) | Dispersion | ARE-250 3 minutes | CNF-10 volume % Nano particle, Fiber |
| 5 | Carbon Black 2 part silicone (20 wt%) | Dispersion Defoaming | ARV-310 1 minutes/ ARE-250 8 minutes | Nano Carbon Black 20wt% (50V%) Nano particle (Total 120g) |
| 6 | Silicone Potting Compounds | Mixing Defoaming | ARV-310 3 minutes | Part A: 4000-8000 poise Part B: 200-700 poise (Total 10g) |
| 7 | Precious metal paste | Dispersion Defoaming | ARV-310 / ARE-250 from 30 sec. to 1 min | General silver filled condudctive epoxy / Jar and syringe application Highly dense metal powder |
| 8 | Carbon NanoTube (1-2 wt%) | Dispersion | ARV-310 6 min | CNT – 1-2 wt% Nano particle tube |
| 9 | Zinc Oxide(10 V%) | Dispersion Defoaming | ARE-250 6 min | ZnO 10 volume % petroleum Jelly 0.85, Zinc Oxide 5.76 |
| 10 | LCD ODF sealant (10V%) | Dispersion Deforming | ARV-5000 TWIN | Au Ball 10 volume % sealant 400,000cP, Au ball 3µ |
| 11 | Printing Ink | Degas | ARV-5000 | Solvent Ink 450g |
| 12 | Viscous Epoxy | Defoaming | ARE-250250AD-EFD-3×6 | Epoxy 828 2.5cc in EFD 3cc Syringe |
| 13 | Alumina | Dispersion Defoaming | ARV-5000 | Aluminum oxide – 20 volume % Silicone 3000cP |
| 14 | LED Phosphor | Dispersion Defoaming | ARV-310+ Syringe Loader | Phosphor 10 wt% Slicone 10,000cP 20g |
| 15 | Viscous Epoxy | Defoaming | ARV-310 + Syringe Loader | Various Epoxy sample |
| 16 | Talc | Dispersion Defoaming | ARE-250 | Silicone 60g – 30wt% Silicone 10,000cP |
| 17 | CNF (1%wt) | Dispersion Defoaming | ARV-310 6min | CNF 1%wt |
| 18 | Suspension | Particle Reduction | ARE-250 3min | Phenytoin as API |
-
![]()
High efficiency of material charging for small-volume syringes. The ARC 40H was designed to fill syringes simply and quickly, without bubbles after mixing the material, directly from the jar. Learn More
Typically Ships in 15 to 20 Business DaysSKU #PDS-ARC-40H -
![]()
Medium-sized, general-purpose model that supports an upgrade to a maximum capacity of 1100g. The ARE-501 lets you mix up to 650ml with a powerful mixing force, generating both rotation and speed. Learn More
Typically Ships in 15 to 20 Business DaysSKU #PDS-ARE-501 -
![]()
A special version of a vacuum mixer that ensures uniform mixing of high specific gravity materials while eliminating submicron-level air bubbles. The ARV-310LED planetary vacuum mixer is specifically designed for mixing dense products, such as powders. Learn More
Typically Ships in 15 to 20 Business DaysSKU #PDS-ARV-310LED -
![]()
State-of-the-art twin system that can vary the rotation-revolution ratio. It achieves real-time monitoring of material temperature. The ARE-400 TWIN allows you to adjust the rotation/revolution ratio. It is a mobile double mixer with a double tank system. Learn More
Typically Ships in 15 to 20 Business DaysSKU #PDS-ARE-400TWIN -
![]()
Improves the efficiency of mixing and degassing small amounts of material. This is a best seller in CE Certified Mixers. The ARE-250C operates both powerful mixing (acceleration of 400 G) and degassing modes (acceleration of 510 G) simultaneously with a simple setting. Learn More
Typically Ships in 15 to 20 Business DaysSKU #PDS-ARE-250C -
![]()
Uniform Mixing and Submicron Level Air Bubble Removal: The standard vacuum mixer features a touch panel and communication function. Robust and durable, the ARV310P is ideal for users who want to make repeated mixes without needing to be mobile. Learn More
Typically Ships in 15 to 20 Business DaysSKU #PDS-ARV-310P -
![]()
Next generation manufacturing application mixer that can vacuum process a maximum Gross weight of 1.86kg (930g x 2) materials with twin cup holder. The ARV 931TWIN is the only mixer to have a double mixing platform. Learn More
Typically Ships in 15 to 20 Business DaysSKU #PDS-ARV-931-Twin -
![]()
Large model that accommodates a maximum capacity of 3L and achieves deaeration at the submicron level. With a maximum product capacity of 5 kg and a tank volume of 4 liters, the ARV 5000 is the titan of planetary mixers. Learn More
Typically Ships in 15 to 20 Business DaysSKU #PDS-ARV-5000 -
![]()
The THINKY PR-1 ultrasonic mixer is the next generation, designed to safely and reproducibly disperse nanoparticles and deagglomerate CNTs, graphene, and other 2D nanomaterials. Learn More
Typically Ships in 15 to 20 Business DaysSKU #PDS-PR-1 -
![]()
PDS offers you the most complete range of pots and adapters 100% compatible with THINKY planetary mixers. Available in several sizes, these pots and adapters will allow you to optimise your mixture. Learn More
Typically Ships in 15 to 20 Business DaysSKU #PDS-Pots
