PreciDuo Two-Component Volumetric Dispenser

SKU #Preci-Duo
Volumetric dispenser for two-component materials packaged in 50ml cartridges. The only volumetric dosing device allowing a two-component deposit, the PreciDuo is compatible with all kind of fluids. This dispenser combines speed and accuracy while its use remains simple.
Request Quote
Request current lead time
Part Number
Preci-Duo

Features

  • The only volumetric dosing device allowing a two-component deposit
  • Continuous Volumetric dispensing
  • No variations with viscosity changes
  • Linear movement and pulsation-free
  • Programmable sequences and dispensing rate
  • 3 dispensing modes: Manual, Automatic, Sequential
  • Minimum volume of 0.06 microliters
  • Capability of push > 500,000 cps
  • Two-component 50ml cartridge (ratio and cartridge base shape to define at the order)

Overview

Designed and manufactured in France, its electromechanical movement guarantees an unmatched accuracy regardless of the variations of viscosity of the fluids dispensed. It also offers a high capacity of pushing force going up to 500 000 cps, thanks to a multiplication of the torque.

The micro-drive system works by moving a linear stepper motor, leading to the movement of the product contained inside the cartridge. Thus, unlike the pneumatic dispensers operated by the air pressure, the PreciDuo – the two-component volumetric dispenser – optimises the dispensing in terms of accuracy and repeatability. In addition to its performance, its use remains very instinctive. Thanks to of previously recorded programs, its shots are regular and constants. You only need to set digitally on the controller the number of steps the motor will make and the dispensing speed rate desired. There is no more need to adapt the settings to the temperature and surrounding conditions. The cartridge attachment system is fast and tool-free.

The equipment can operate in three modes:

  • Manual: As long as the cycle is activated by the foot pedal or a closed contact, the device dispenses at a set speed.
  • Automatic: At each impulse (foot pedal or PLC contact) the PreciDuo dispenses according to the registered active program settings.
  • Sequential: This mode is a succession of programs (different or identical) spaced by a selectable period of time.
More Information
Manufacturer Poly Dispensing Systems
Product Series PreciFluid Volumetric Dispenser
Product Type Dispensing Devices
Size / Operation Benchtop
Industry Government and Defence Communications, Aerospace and Defence, Optical Equipment Manufacturing (OEM)
Applications OEM (Optical Equipment Manufacturing), Automated Manufacturing, High-Volume Manufacturing, High-Yield Manufacturing
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:PreciDuo Two-Component Volumetric Dispenser
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
In This Series
  1. PreciFluid Volumetric Dispenser
    PreciFluid Volumetric Dispenser
    Request Quote
Related Products
  1. PDS MV-Series Positive Displacement Metering Valves
    PDS MV-Series Positive Displacement Metering Valves
    Request Quote
  2. PDS 700ETC Valve Controller
    PDS 700ETC Valve Controller
    Request Quote
  3. Precifluid P.Mix-100 Planetary Mixer
    Precifluid P.Mix-100 Planetary Mixer
    Request Quote

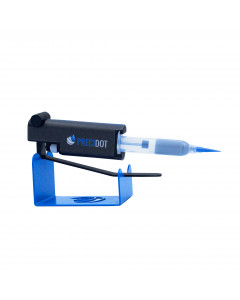

  4. Precidot Volumetric Manual Dispensing Tool
