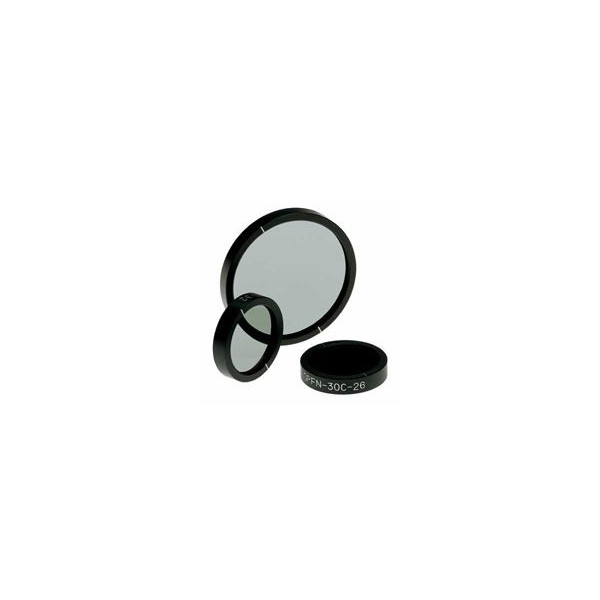

Plastic Polarizers
SKU #USP-50C0.4-38
Dichroic Polarisers
Request current lead time
Part Number
USP-50C0.4-38
Dichroic Polarisers
-
Plastic sheet polarizers are convenient and useful for multiple purposes
-
Available with glass cover plates and mounting ring for rigidity and protection
-
Unmounted versions available up to 100mm in diameter
-
Single sheet transmission of 36%
-
Extinction ratio of 1 x 10-4 for high contrast applications
| Diameter | 50 mm |
| Aperture | 47 mm |
| Optic Thickness | 0.75 mm |
| Wavelength range | 400 - 700 nm |
| Dimensions tolerance | +/-0.2 mm |
| Extinction ratio | 1 x 10-4 |
| Transmittance @ 550 nm | 36% |
| Material | Dichroic plastic |
| Temperature range | -30 to +80 deg C |
| Coating | Broadband AR |
| Manufacturer | OptoSigma |
|---|
