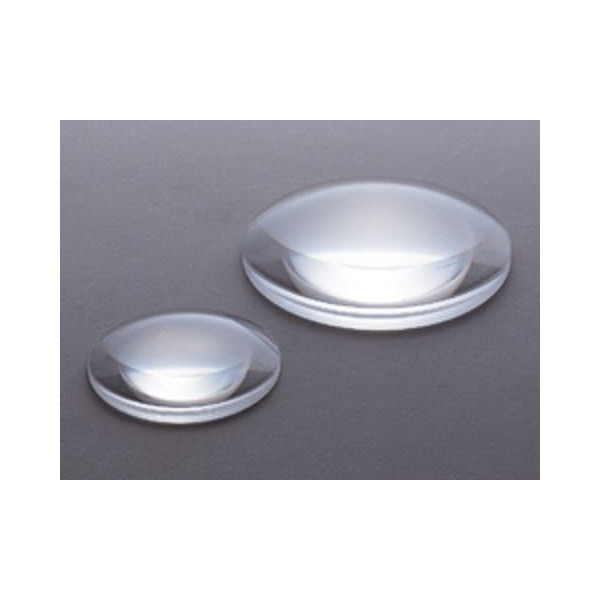

OptoSigma Plano Convex Lenses

SKU #SLSQ-25-30P
Fused Silica Plano Convex Lenses
Request Quote
Typically Ships in 15 to 20 Business Days
Part Number
SLSQ-25-30P



Spherical lenses, Fused Silica Plano Convex Lenses



  • Simple positive fused silica lenses for general use

  • Focal lengths from 8 to 5000mm

  • Diameters from 5 to 50.8mm

  • Complete range of optional Anti-Reflection coatings available



Diameter  25 mm
Focal Length  30 mm
Tc  10 mm
Te  2 mm
Fb  23.2 mm
R  13.80 mm
Centration  <= 1 arcmin
Surface Quality  20 - 10
Material  SFS
Coating  none
Focal Length Tolerance  +/- 1%
Clear Aperture  >= 90%
Diameter Tolerance  +0; -0.1 mm
Thickness Tolerance  +/- 0.15 mm
Design Wavelength  546.1 nm
Bevel  0.2 mm x 45 deg. typical.
More Information
Manufacturer OptoSigma
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
