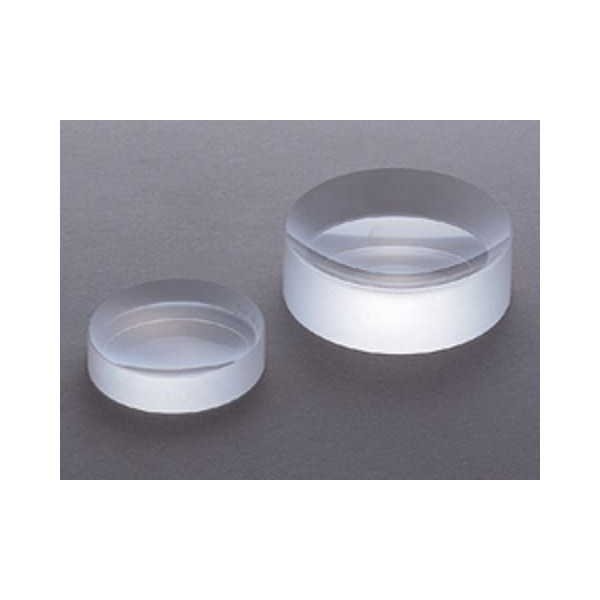

OptoSigma Plano Concave Lenses

SKU #SLSQ-10-100N
Fused Silica Plano Concave Lenses
Request Quote
Typically Ships in 15 to 20 Business Days
Part Number
SLSQ-10-100N



Spherical lenses, Fused Silica Plano Concave Lenses



  •  Simple negative lenses for general use
  • Focal lengths from -15 to - 300mm

  • Diameters from 10 to 50.8mm

  • Complete range of optional Anti-Reflection coatings available



Diameter  10 mm
Focal Length  -100 mm
Tc  2.0 mm
Te  2.3 mm
Fb  -101.4 mm
R  46.00 mm
Centration  <= 1 arcmin
Surface Quality  20 - 10
Material  SFS
Coating  none
Focal Length Tolerance  +/- 1%
Clear Aperture  >= 90%
Diameter Tolerance  +0; -0.1 mm
Thickness Tolerance  +/- 0.15 mm
Design Wavelength  546.1 nm
Bevel  0.2 mm x 45 deg. typical.
More Information
Manufacturer OptoSigma
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
