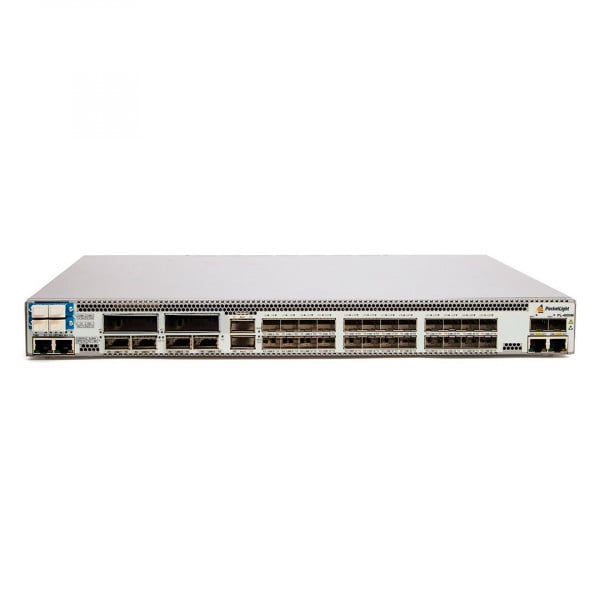

PacketLight PL-4000T - 1.6T Integrated Transponder/Muxponder

The PL-4000T is a full optical transport solution of up 1.6T capacity in a pay-as-you-grow architecture. The device has 4 slices, with each one supporting 1 x 400G transponder or 4 x 100G muxponder configurations, and is interoperable with third party switches or routers. The PL-4000T supports DCI applications for enterprise, campus and cloud computing networks with 400G per wavelength.

The product meets market demands for low power consumption, rack space savings and reduction in the overall solution CAPEX and OPEX by increasing the capacity of enterprise DCI and metro networks.

Flexible Design

The PL-4000T has a flexible selection of 4x100GbE muxponder or 1x400GbE transponder to 400G uplink per slice. This flexible solution enables pay-as-you-grow architecture.

The solution provides full demarcation point between the 100GbE, OTU4 and 400GbE client service and the DWDM uplink by supporting performance monitoring of both the optical transport layer (OTN) and service interfaces.

Powerful Feature Set

The PL-4000T is a modular and cost-effective high capacity solution for rolling out 400GbE and 100GbE services, or increasing existing network capacity. The device supports up to four 400G DCO pluggable uplink optical modules, delivering up to 1.6T in a 1U chassis The PL-4000T integrates 4:1 mux/demux, 1 or 2 EDFA modules and OSW and delivers the entire optical layer. The product supports standards-based Layer-1 encryption for data security.

Highly Integrated 1U

Integrated optical transport solution with integrated EDFA, mux/demux and optical switch in 1U.

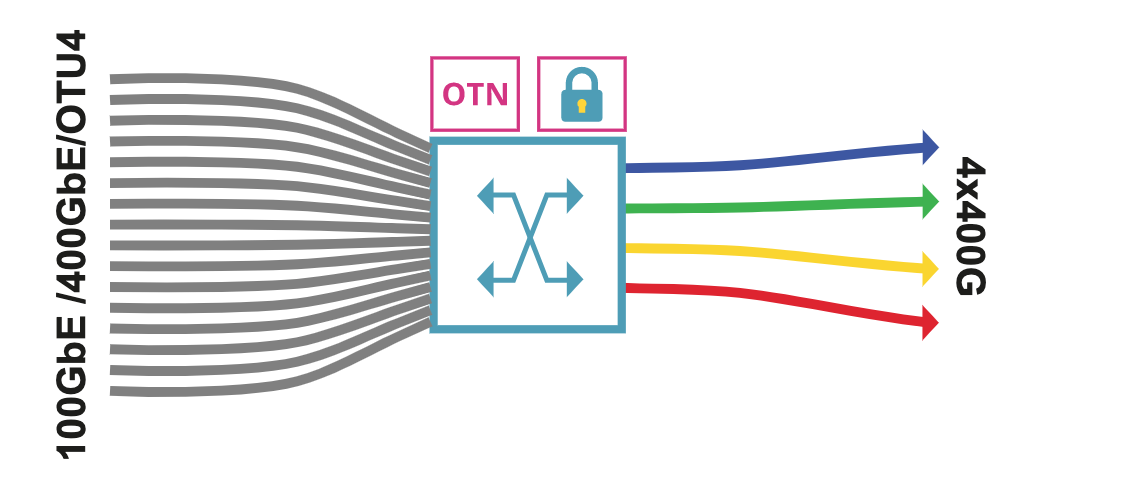

PL-4000T Diagram

Features

• Operation modes per slice:
  • 4 x 100G muxponder
  • 1 x 400G transponder
• Supported clients: 100GbE, 400GbE, OTU4
• Supported FEC modes on the line side:
  • C-FEC (for OIF ZR standard)
  • O-FEC (for OpenZR+ standard)
  • O-FEC (for OpenROADM standard)
• Standard MSA pluggable modules:
  • 16 x 100GbE QSFP28 clients
  • 4 x 400GbE QSFPDD clients
  • 4 x 400G CPF2-DCO DWDM uplinks
  • 4 x 400G QSFPDD-DCO DWDM uplinks
• Layer-1 GCM-AES-256 encryption
• FIPS 140-2 Level 2 compliant
• CNSA Top Secret Suite B 2015 compliant
• Layer-1 and Layer-2 PM for 100GbE and 400GbE clients
• OTN PM for OTU4 clients
• Elliptic Curve Diffie-Hellman key exchange
• Comprehensive line and service performance monitoring
• Integrated 4:1 mux/demux and optical switch (optional)
• Integrated booster/preamp EDFA modules (optional)
• Facility protection using an integrated optical switch (optional)
• Remote management with in-band GCC, or out-of-band OSC
• Easy maintenance with field-replaceable parts:
  • Dual hot pluggable power supply units (AC/DC)
  • Dual field replaceable FAN units
