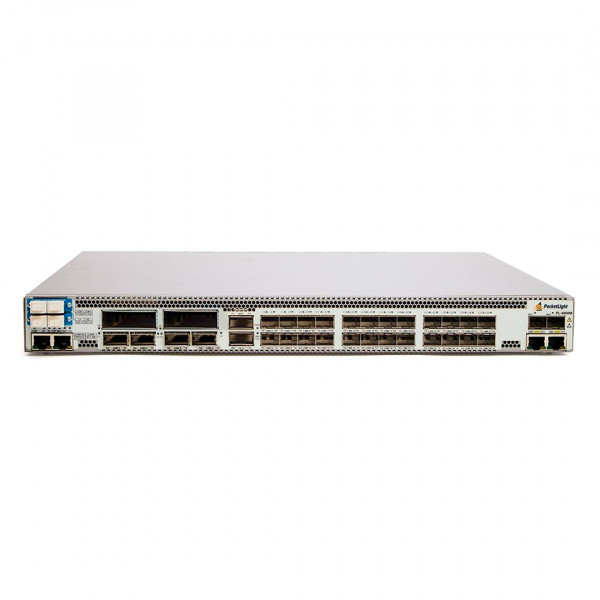

PacketLight PL-4000M - 400G Muxponder

SKU #PL-4000M
The PacketLight PL-4000M is a high capacity transport platform which aggregates a flexible mix of services into a 400G DWDM uplink for DCI, Metro, Short- and Long-haul Applications.
Request Quote
Request current lead time
Part Number
PL-4000M

Overview

The PL-4000M is a modular and cost-effective solution for rolling out multirate 10/25/100GbE, 16/32G FC, OTU2/2e/4 services, or increasing existing network capacity. The device delivers 400G capacity over a single wavelength in a 1U chassis, using dual 400G pluggable CFP2-DCO modules for coherent metro and long haul applications.

The product meets market demands for low power consumption, rack space savings and reduction in the overall solution CAPEX and OPEX by increasing network capacity.

Flexible Design

The PL-4000M provides full demarcation point between the service and the OTN/DWDM uplink, and is interoperable with any third party switch or router. This provides full visibility and performance monitoring of both line optical transport layer (OTN) and 10/25/100GbE, 16/32G FC, and OTU2/2e/4 service interfaces.

Powerful Feature Set

The PL-4000M delivers carrier grade, high-end 400G capacity per wavelength, capable of serving multiple applications and protocols for enterprise and data center networks, such as data, storage, video, and OTN. The product supports standards-based Layer-1 encryption, configurable per service or per uplink.

High Spectral Efficiency

Support of multiple services and rates over 400G single wavelength.

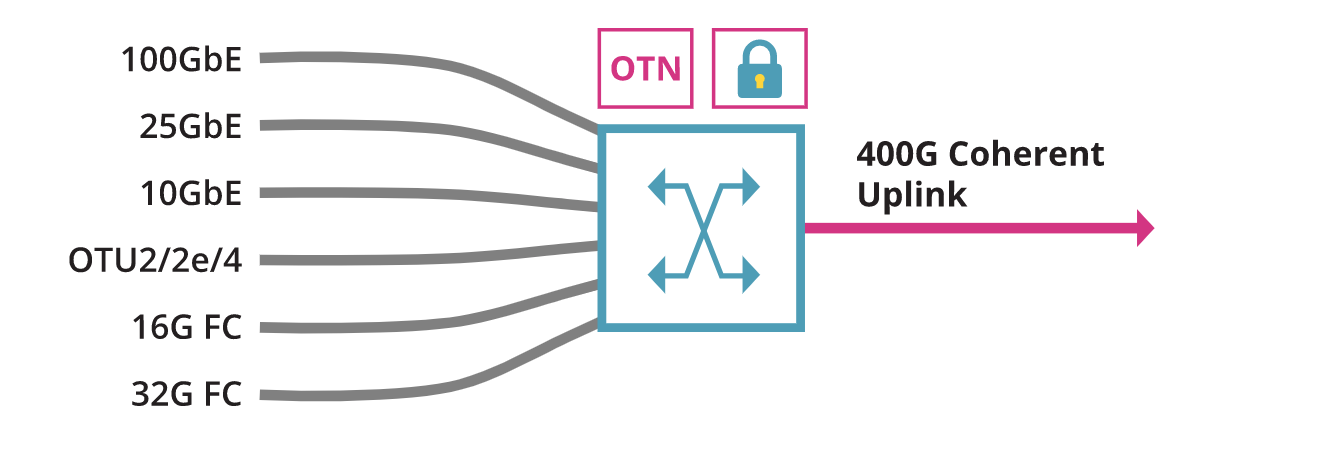

PL-4000M Diagram

PL-4000M Diagram


Features

  • Flexible high capacity architecture based on 400G pluggable digital coherent optical modules
  • Supported clients: 10/25/100Gb Ethernet, 16/32G Fibre Channel, OTU2/2e/4
  • Flexible mix of client services mapped into a single 400G DWDM wavelength
  • Supports O-FEC mode on the line side
  • Standard MSA pluggable modules:
    • Uplink: dual 400G CFP2-DCO
    • Clients: 4 x QSFP28 for 100GbE or OTU2/2e/4,24 x SFP+ / SFP28 for all others
  • Layer-1 GCM-AES-256 encryption
  • Elliptic Curve Diffie-Hellman key exchange
  • Comprehensive line and service performance monitoring
  • Integrated EDFAs, pre-amp and/or booster (optional)
  • Facility protection using an integrated optical switch (optional)
  • Remote management using in-band GCC or out-of-band OSC
  • Easy maintenance with field-replaceable parts:
    • Dual hot pluggable power supply units (AC/DC)
    • Fan unit

Applications

  • 400G metro and long haul network applications ranging up to 1,200km
  • 200G long hall applications ranging up to 2,500km
  • High capacity DCI for enterprise, campus and cloud computing networks
  • 400G links to bolster existing OTN/DWDM infrastructure
  • Last mile access/aggregation CPE for 100GbE managed services
  • Secured and encrypted communication for 10/25/100GbE, 16/32G FC, and OTU2/2e/4 services

Benefits

  • Cost-effective high capacity transport of 400G over single wavelength
  • Supports flexible mix of client interface protocols
  • Embedded Layer-1 GCM-AES-256 encryption
  • Integrated EDFAs and optical switch in 1U chassis
  • User-configurable 200G/400G operation mode
More Information
Manufacturer PacketLight
Product Series PacketLight PL-4000M - 400G Muxponder
Product Type Muxponders
Size / Operation Rack Mount
Industry Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions
Applications CWDM / DWDM, Multiplexed Transmission Testing, Metro Ethernet, Data Centre Connectivity, GPON (Gigabit Passive Optical Network), Last Mile, Network Infrastructure, Network Core and Edge, OTN (Optical Transport Networking), CWDM (Coarse Wavelength Division Multiplexing), DWDM (Dense Wavelength Division Multiplexing), Dark Fiber, Layer-1 Encryption for Optical Networks, Storage Area Networks (SAN), Acoustic and seismic sensing, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Networking Protocol 200G Ethernet, 400G Ethernet, 100G Ethernet LAN, 10G Ethernet, 25G Ethernet
Operating Temp. (Min) -5°C
Operating Temp. (Max) 50°C
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:PacketLight PL-4000M - 400G Muxponder
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Brochures and Specifications
Related Products
  1. PacketLight PL-300 Family - Passive Optical Solution For Dual and Single Fiber
    PacketLight PL-300 Family - Passive Optical Solution For Dual and Single Fiber
    Request Quote
  2. PacketLight PL-2000M - 200G Single Wavelength Muxponder
    PacketLight PL-2000M - 200G Single Wavelength Muxponder
    Request Quote

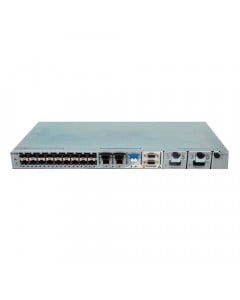

  3. PacketLight PL-400 - Multi-Service CWDM or DWDM Transport Access Device
