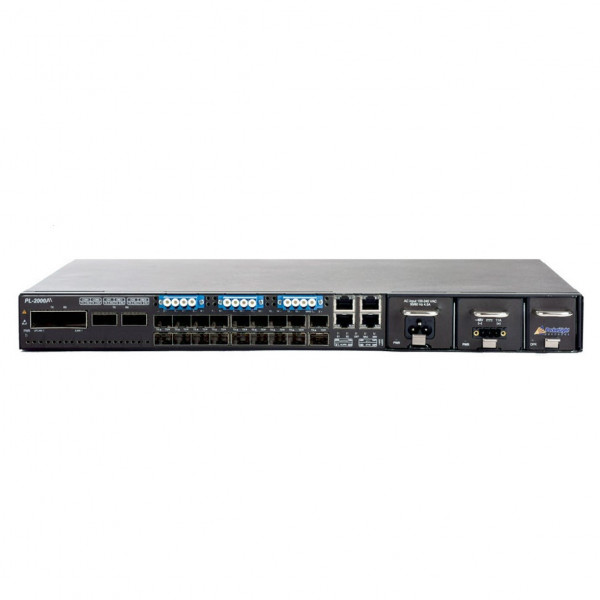

PacketLight PL-2000M - 200G Single Wavelength Muxponder

The PL-2000M provides high transport capacity of 200G over a single wavelength. The solution meets market demands for low power consumption and rack space savings, reducing overall CAPEX and OPEX and enabling to easily and cost-effectively roll-out service and increase capacity of enterprise DCI (data center interconnect) and metro networks.

The PL-2000M supports a flexible mix of 10G/40G/100G client interface protocols in various muxponder and transponder operation modes, combining different protocols and rates over a single 200G uplink.

Flexible Design

The PL-2000M 1U device supports up to two integrated optical amplifiers and an optical switch. It is the smallest, most integrated transport solution of its kind, reaching up to 200km/42dB without intermediate sites and 1,000 km with inline sites.

Powerful Feature Set

The PL-2000M delivers carrier grade, high-end 200G solutions, capable of serving multiple applications and protocols for enterprise and data center networks, such as data, storage, video, and TDM (time-division multiplexing). The product supports standards-based Layer-1 encryption, configurable per service or per uplink.

High Spectral Efficiency

Providing high spectral efficiency at affordable cost for DCI, enterprise, campus and cloud computing networks.

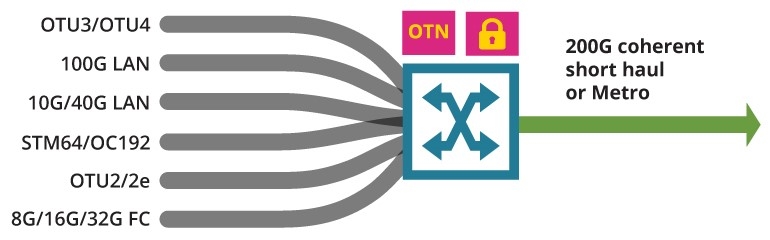

PL-2000M Connectivity

Features

• User-configurable muxponder and transponder operation modes
• Supported clients: 10G/40G/100G LAN, 8G/16G/32G Fibre Channel, OC192/STM64 SONET/SDH, OTU2/OTU2e/OTU3/OTU4 OTN
• 200G uplink aggregation, using any mix, for example:
  • Up to 20 x 10G (multi-rate) clients
  • 2 x 100G clients
  • 1 x 100G + 10 x 10G clients
  • 4 x 40G + 4 x 10G clients
• Forward error correction (FEC):
  • Standard ITU-T G.709 GFEC
  • SD-FEC
• 200G pluggable CFP2 coherent (ACO) tunable DWDM line interface
• Layer-1 GCM-AES-256 encryption, complies with FIPS 140-2 Level 2
• Diffie-Hellman key exchange
• Comprehensive line and service performance monitoring
• Optional integrated booster and/or preamp EDFA
• Facility protection using an optional integrated optical switch
• Remote management with in-band, GCC or out-of-band OSC
• Dual AC or DC pluggable power supply and pluggable fan unit
• Supports standard MSA pluggable SFP+, QSFP+, QSFP28 and CFP2
• Operates with dual or single fiber
