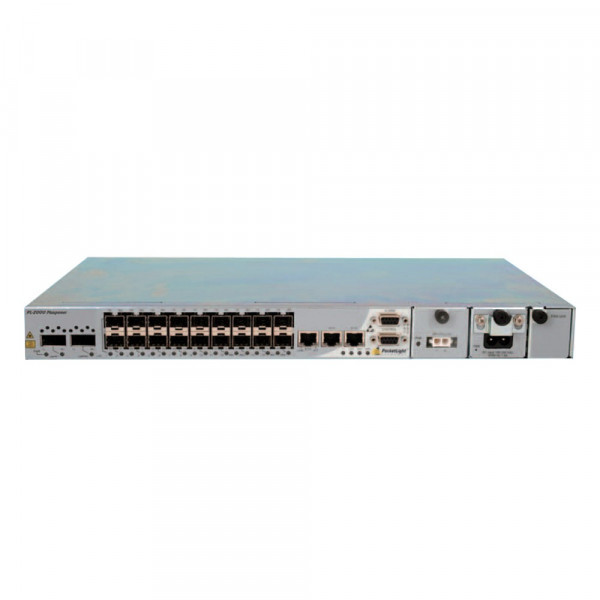

PacketLight PL-2000 - 10G Multirate/Multiprotocol CWDM DWDM Muxponder

SKU #PL-2000
The PL-2000 is an advanced Multiprotocol/Multirate Muxponder with flexible uplink aggregation capacity of up to 20G
Request Quote
Request current lead time
Part Number
PL-2000

10G Multirate/Multiprotocol CWDM DWDM Muxponder

  • 16:1 Muxponder of Multirate clients over protected 10G OTU2 uplink
  • Dual 8:1 Muxponder of Multirate clients over 10G OTU2 uplink, total aggregated of 20G
  • Low latency, full transparency transport layer
  • Inband (GCC) or Outband (OSC) remote management
  • Uplink facility protection < 50ms APS
  • Performance Monitoring on Uplink and Service ports
  • Remote Management and Monitoring

Features

  • Up to 16 multiprotocol and multirate services aggregation over a single or dual OTU2 uplinks
  • Service type supported are: Fast Eth, GbE, 1/2/4G FC/FICON, STM-1/OC-3, STM-4/OC-12, STM-16/OC-48 and video protocols such as DVB-ASI, SD-SDI, HD-SDI, 3G HD-SDI
  • Dual standard based Optical Transport Network (OTN) OTU2 Uplinks supporting multiple Forward Error Correction (FEC/EFEC) types
  • 1+1 Facility uplink protection
  • Supports both Line and Service performance monitoring
  • Optional integrated EDFA and/or MUX/DEMUX modules

Overview

10G Muxponder PL-2000 provides efficient and flexible aggregation layer of multi-protocol/multirate sub-10G services into single 10G uplink trunk. The 10G OTU2 uplink can aggregate simultaneously SDH/SONET, Ethernet, Fibre Channel and Video services, thus providing a perfect access platform for multiple clients’ needs and allows merger of legacy and new services transparently. The rates and protocols supported range from Fast Ethernet to Gigabit Ethernet, 1/2/4G FC/FICON, STM-1/OC-3, STM-4/OC-12, STM-16/OC-48 and video signals of DVB-ASI, SD-SDI, HD-SDI, 3G HD-SDI.

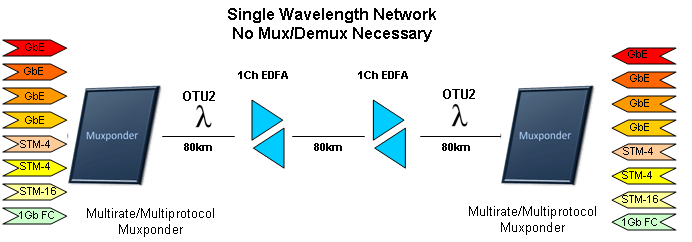

PL-2000 supports two modes of operation. In one mode, it can aggregate up to 16 multirate/multiprotocol services into a single 10G OTU2 uplink pipe with a second 10G OTU2 uplink pipe providing full line protection. In another application, PL-2000 can aggregate 16 (dual 8) multirate/multiprotocol services into a 20G aggregated uplink pipe with OTU2 capability. This application is a perfect fit for ring applications and high bandwidth point to point applications.

Applications

  • Service providers multi service access platform
  • Transporting multi-services over long distance optical network
  • Upgrading legacy infrastructure with new services
  • Building efficient and flexible CWDM/DWDM solutions for Enterprises



10G Multirate/Multiprotocol CWDM DWDM Muxponder



More Information
Manufacturer PacketLight
Product Series PacketLight PL-2000 - 10G Multirate/Multiprotocol CWDM DWDM Muxponders
Industry Data Centres, Enterprise Networks, Broadcast
Applications CWDM / DWDM, Multiplexed Transmission Testing, Metro Ethernet, Data Centre Connectivity, GPON (Gigabit Passive Optical Network), Last Mile, Network Infrastructure, Network Core and Edge, OTN (Optical Transport Networking), CWDM (Coarse Wavelength Division Multiplexing), DWDM (Dense Wavelength Division Multiplexing), Dark Fiber, Layer-1 Encryption for Optical Networks, Storage Area Networks (SAN), Acoustic and seismic sensing, RF and microwave photonics, Broadcast and Transmission, Enterprise Networking
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
