PacketLight PL-1000T - 100G Transponder Solution

Overview

Highest 100G density feature set in the market. Compact 1U platform with low power consumption ideal for CPE (Customer Premises Equipment) and Data Center Environment 100G Transponder mode supporting 100G Base - SR10/LR4/ER4.

PL-1000T is highly integrated platform for providing a unified 100G optical transport layer- supporting various 100G client services including LR4/ER4 and SR10 and seamlessly interfaces with any third party equipment.

The PL-1000T provides 100G Optical Transport solution in modular and cost effective way for rolling out 100G services. It uses standards based, pluggable optical modules on all optical interfaces on both client and line side. It is designed for meeting the market demands for low power consumption and rack space savings thus reducing the overall solution CAPEX and OPEX and increasing the capacity of enterprise and metro networks.

The PL-1000T provides 1+1 facility protection and supports two DWDM 100G OTU4 uplinks. The protection is done under 50ms and enables the transport of the data over two divers fiber routes between the sites.

The PL-1000T 1U device supports up to two integrated optical amplifiers, Mux/Demux and DCM providing the smallest, most integrated transport solution of its kind reaching up to 200Km / 34dB without intermediate sites.

PL-1000T is ideal for the following applications:

• High capacity enterprise and campus networks ranging up to 200km

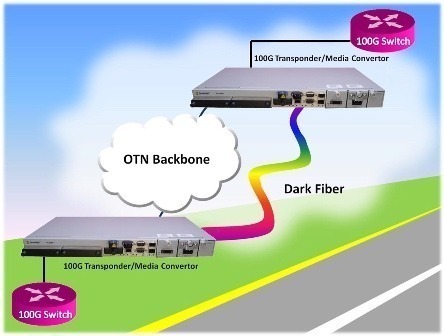

• Acting as a media convertor between the different 100G optical interfaces
• High bandwidth connectivity for data center and cloud computing
• CPE for 100G managed services
• Providing 100G links over existing infrastructure (alien wavelength)

The PL-1000T is the most unique 1U device supporting up to two integrated optical amplifiers, Mux/Demux and DCM in the smallest, most integrated transport solution of its kind.

PL-1000T can serve both as an OTN transponder and a high bandwidth media convertor between different 100G interfaces making is an ideal solution for enterprise, data center, and campus networks.

Additionally, PL-1000T can seamlessly integrate with any 3rd party network equipment providing a truly 100G solution.
