PacketLight PL-1000RO - Reconfigurable Optical Add-Drop Multiplexer (ROADM)

SKU #PL-10000RO
Advanced Integrated ROADM platform providing flexible Wavelength Add Drop, Automatic Power Balancing and Amplification for next generation DWDM Network Infrastructure
Request Quote
Contact to confirm lead time
Part Number
PL-10000RO

PacketLight’s PL-1000RO offers the ROADM functionality based on the most advanced next generation WSS (wavelength-selective switch) technology.

  • Integrated 1U solution
  • Optical Power Monitoring for all channels and automatic power balancing
  • Supports optional embedded EDFA Booster/Preamp
  • Optional internal 4/8 Mux/Demux and Band Splitters
  • Supporting 40Gbps and 100Gbps
  • Embedded Optical Supervisory Channel for remote management
  • Dual AC or DC pluggable Power Supply and pluggable FAN Unit
  • Friendly NMS interface to deploy new services, control and monitor the optical network

Features

  • Flexible wavelengths Add/Drop
  • Auto Optical Power Equalization
  • Configurable up to 96 Add/Drop Channels
  • Supports up to 96 C-Band channels
  • WDM Spacing 50Ghz or 100GHz
  • Power monitoring of all channels
  • Power equalization between all channels
  • Supporting 10G/40G and 100G wavelengths
  • A to Z provisioning of wavelengths and protection from NMS system
  • Auto discovery of network to topology and service management

Overview

PacketLight’s PL-1000RO offers the ROADM functionality based on the most advanced next generation WSS (wavelength-selective switch) technology.

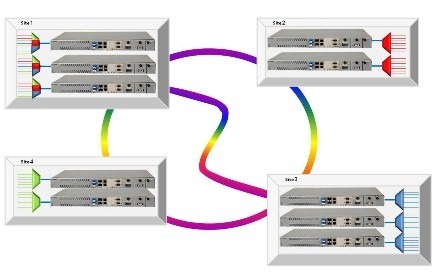

ROADM based network architecture simplifies configuration and management of DWDM network infrastructure and reduces the time it takes to provision new services over the network. PacketLight's ROADM solution offers highly flexible wavelength routing capabilities suitable for mesh, ring, linear add/drop, core and edge DWDM network topologies.

The PL-1000RO ROADM is configured dynamically to add/drop selected wavelengths at any node in the network and seamlessly change the network node capacity as needed. In addition, it automatically maintains the equalization and power balance of the added and bypass wavelengths. The PL-1000RO ROADM also integrates EDFA for amplifying the wavelengths and delivering effective long distance DWDM solutions.

The PL-1000RO supports colorless, directionless and both 50GHz and 100GHz grids.

PL-1000RO ROADM simplifies network management and reduces operation costs (OPEX) by allowing deployment of new wavelengths remotely. PL-1000RO fully integrates PacketLight Transponder and OTN product families and is managed from the PacketLight LightWatch NMS platform.

Applications

  • ROADM based network architecture simplifies configuration and management of mesh and ring based DWDM network architecture.
  • It offers highly flexible wavelength routing capabilities suitable for mesh ring, linear add/drop, core and edge DWDM network topologies.
  • Provides full colorless and directionless DWDM agile backbone
  • PL-1000E-RO simplifies network management and reduces operation costs (OPEX) by allowing deployment of new wavelengths remotely.



PL-1000RO ROADM

More Information
Manufacturer PacketLight
Industry Data Centres, Enterprise Networks
Applications CWDM / DWDM, Multiplexed Transmission Testing, Metro Ethernet, Data Centre Connectivity, GPON (Gigabit Passive Optical Network), Last Mile, Network Infrastructure, Network Core and Edge, OTN (Optical Transport Networking), CWDM (Coarse Wavelength Division Multiplexing), DWDM (Dense Wavelength Division Multiplexing), Dark Fiber, Layer-1 Encryption for Optical Networks, Storage Area Networks (SAN), Acoustic and seismic sensing, RF and microwave photonics, Enterprise Networking
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
