Uplink based on coherent 50GHz Tunable 50GHz pluggable DWDM CFP for up to 1,200Km
Pluggable optics for 100G line and 8G/10G/40G/100G Client interfaces
Performance monitoring on all interfaces
Integrated optical amplifiers and DCM for extended reach
Out of band OSC or GCC inband remote management
Based on the same MIBs and interoperable with PacketLight product family
Dual AC/DC pluggable power supply and Fan unit

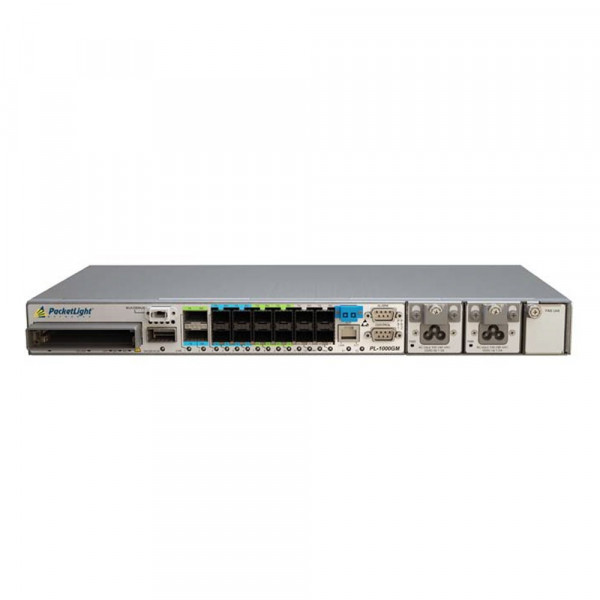

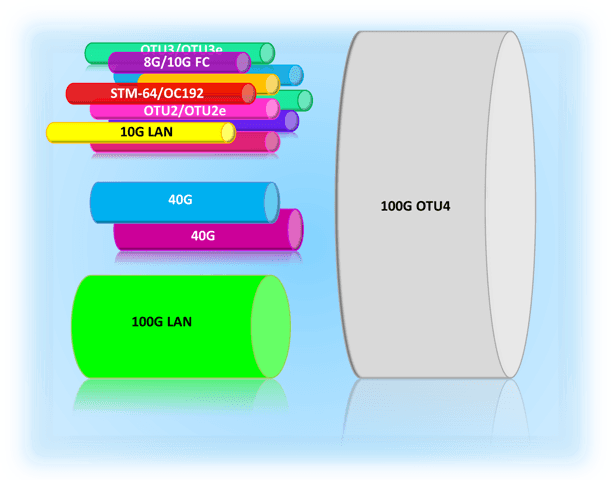

The PL-1000GM is PacketLight’s 100G Muitiprotocol Multirate Muxponder/Transponder for high capacity optical transport solution. It is highly integrated platform for providing a unified 100G optical transport layer- supporting various client services including protocols: 40G/100G LAN, 10G LAN/WAN, STM64/OC-192, OTU2/3 and 8G/10G FC.
Cost effective 100G solution expandable to up to 96 channels
Support any mix of 10G, 40G Muxponder or 100G Transponder in same platform
Highly integrated solution including EDFAs, Mux/DeMux and DCMs
Optical interface flexibility using pluggable optics for both client and line side
Smallest foot print/port capacity functionality in the market
Low power consumption
Based on current products proven SW, HW and management architecture
Support both AC and DC PSU
The PL-1000GM is designed to provide 100G transport solution in modular and cost effective way for rolling out services. It uses standards based, pluggable optical modules on all the optical interfaces on both client and line side. It is targeted for meeting the market demands for low power consumption, rack space savings and reduction in the overall solution CAPEX and OPEX by increasing the capacity of enterprise and metro networks.
Unlike other 100G solutions, PacketLight integrates up to two optical amplifiers, Mux/Demux and DCM modules if needed in the same 1U chassis offering the smallest and the most integrated 100G transport solution in the industry.
Ideal for applications such as:
Metro networks ranging up to 1,200km
Enterprise and campus networks
Data Center connectivity and cloud applications
P2P 34dB-link budget without inline amps
Last mile access/aggregation CPE for managed services providers
Providing 100G links over existing infrastructure (alien wavelength)
CWDM / DWDM, Multiplexed Transmission Testing, Metro Ethernet, Data Centre Connectivity, GPON (Gigabit Passive Optical Network), Last Mile, Network Infrastructure, Network Core and Edge, OTN (Optical Transport Networking), CWDM (Coarse Wavelength Division Multiplexing), Dark Fiber, DWDM (Dense Wavelength Division Multiplexing), Layer-1 Encryption for Optical Networks, Storage Area Networks (SAN), Enterprise Networking, Ethernet and LAN Devices, Fiber Interconnect Components
