Supports up to 8 multirate and multiprotocol services from 622Mbps up to 40Gbps
Increase fiber utilization using layer-1 DWDM or CWDM technology
Low latency connectivity, ideal for trading applications and synchronous data center replication
Integrated EDFA, Mux/Demux, DCM and optical switch modules
Support the entire range of Fibre channel protocols 2/4/8/10G and 16G
Remote management with both optical supervisory channels and in-band management uplinks- based on MSA pluggable SFP and SFP+ allowing maximum flexibility as well as ease of maintenance and operation
The PL-1000TE is designed to support point-to-point, Linear ADM and Ring topologies with uplink facility protection and service protection.
CPRI communication between BaseBand Unit (BBU) and Remote Radio Head (RRH)
8 Encrypted Transponders in a compact 1U chassis
Supports the following client service types:
Data: GbE/10G/40G Ethernet
Storage: 4G/8G/10/16G FC
High end Encryption core:
GCM- AES-256 Layer-1 data encryption
Periodical Diffie Hellman key exchange
Configurable period of up to 1 minute
Complies with NIST FIPS-140-2
Level 2 and NSA Suite B requirements
Uses pluggable SFP/SFP+ optics for both service and uplinks
Supports full C-Band Tunable DWDM Line sides (SFP/SFP+)
Optional integrated EDFAs, Mux/Demux and Optical Switch modules
Bidirectional performance monitoring
Supports single and dual fiber
Dual AC/DC pluggable Power Supply and pluggable FAN Unit

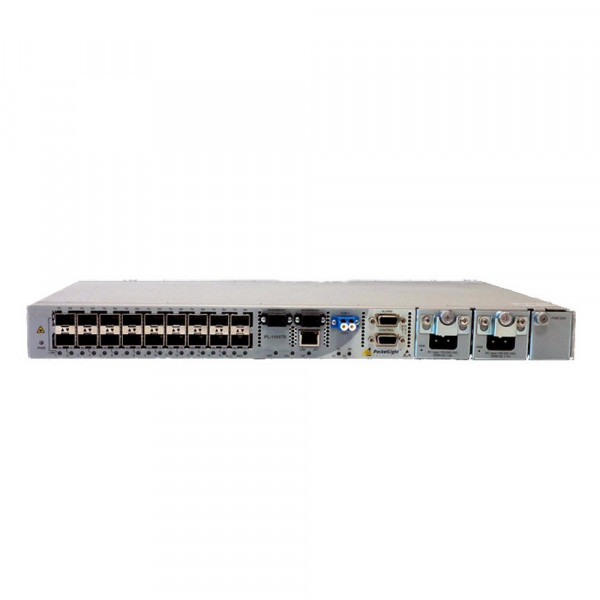

PL-1000TE is an advanced, all-in-one DWDM and CWDM optical transport product supporting up to 8 transponders with flexible mix of industry standard based protocols. It integrates a rich and cost effective feature set in a compact 1U chassis with low power consumption.
The PL-1000TE is designed for both DWDM and CWDM applications that require high throughput and low latency, data, storage, TDM and ATM connectivity. By combining a variety of multi-rate services, PL-1000TE allows maximum flexibility and scalability for fiber optic connectivity.
The availability of sub 10G, 10/40G and 16G FC flexible services mix in the same product, provides transparent migration capability from 1Gbe to 10Gbe and 40Gbe services with zero downtime. PL-1000TE allows easy upgrade or expansion of the required services by simply adding the needed pluggable optic modules (SFPs/SFP+) in the available slots or by stackable solution. This architecture provides true scalability at the minimum possible cost.
The PL-1000TE is highly suitable for applications such as:
High capacity low latency, data center interconnect (DCI)
Efficient connectivity for campus, ISP and enterprise networks
Enables delivery of high bandwidth managed services over dark fiber
Upgrade of existing WDM networks to support 10GEth, 40GEth and 16G FC services
Trading applications and synchronous data center replication requiring low latency
High throughput Metro Ethernet connectivity
Solving bottlenecks in fiber exhausted optical networks
Distance extension for 40G data networks up to 120KM
CWDM / DWDM, Multiplexed Transmission Testing, Metro Ethernet, Data Centre Connectivity, GPON (Gigabit Passive Optical Network), Last Mile, Network Infrastructure, Network Core and Edge, OTN (Optical Transport Networking), CWDM (Coarse Wavelength Division Multiplexing), Dark Fiber, DWDM (Dense Wavelength Division Multiplexing), Layer-1 Encryption for Optical Networks, Storage Area Networks (SAN), Broadcast and Transmission, Enterprise Networking, Ethernet and LAN Devices, Fiber Interconnect Components
