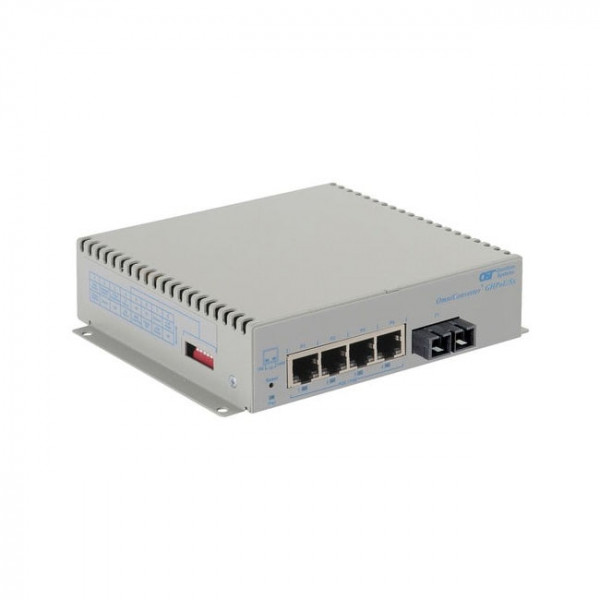

OST OmniConverter GHPoE/SX 60W 12KM 4X 10/100/1000T - 1000X SCSM DC Ext

Omnitron Systems OmniConverter Unmanaged Industrial Gigabit High Power 60W PoE, SM SC, RJ-45, Ethernet Fibre Switch - 4 x 10/100/1000BASE-T, 1 x 1000BASE-X, DC Power, 5 Year Warranty

The OmniConverter GHPoE/Sx is a compact unmanaged High-Power PoE Ethernet fibre switch that features one or two Gigabit fibre ports and four 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet ports. The OmniConverter GHPoE/Sx provides PoE, PoE+, and High-Power 60W PoE (also called 4 Pair PoE, PoE++, or UPoE) per RJ-45 port for outdoor pan-tilt-zoom cameras with heaters and blowers, and multi-stream wireless access points. The GHPoE/M switch enables network distance extension with fibre cabling.

The OmniConverter GHPoE/Sx is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The OmniConverter GHPoE/Sx supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate fibre port, preventing the multicast video traffic from flooding other network ports.

Models with two fibre ports support redundant fibre uplinks for critical applications that require protection and sub 50ms restoration in the event of a fibre failure. The second fibre port may also be used to daisy-chain multiple Ethernet switches, or it may be used as another switch port.

Models with two fibre ports also support Dual Device mode that enables the GHPoE/Sx to operate as two independent and isolated Ethernet switches. In Dual Device mode, the GHPoE/Sx provides separate and independent data traffic paths between the two fibre links and four RJ-45 ports.

The OmniConverter GHPoE/Sx is available with fixed ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fibre ports support multimode or single-mode and dual fibre or single-fibre with distances up to 140 km. SFP models support a variety of distances in standard and CWDM wavelengths.

The GHPoE/Sx automatically negotiates and delivers the power level required by a Powered Device (PD) partner. When negotiating to PoE (IEEE 802.3af) it delivers up to 15.4 Watts per RJ-45 port. When negotiating to PoE+ (IEEE 802.3at) it delivers up to 30 Watts per RJ-45 port. To support high powered devices, each port can be configured to deliver up to 60 Watts of power.

The GHPoE/Sx features a remote PoE power reset function that allows all PDs to be power cycled and reset remotely to save time and expense by eliminating the need to dispatch manpower to remote network sites.

The compact OmniConverter Ethernet switches can be wall mounted or DIN-rail mounted using an optional mounting clip. They are available with an external 100 to 240V AC power adapter or a DC terminal connector.
