OST OmniConverter G/SX SC MM 2KM 4X 10/100/1000T to 1000X US AC

SKU #2862-6-14-1
Omnitron OmniConverter Unmanaged Gigabit, MM SC, RJ-45, Ethernet Fibre Switch - 4 x 10/100/1000BASE-T, 1 x 1000BASE-X, AC Power, 5 Year Warranty
Request Quote
Typically Ships in 15 to 20 Business Days
Part Number
2862-6-14-1

Omnitron Systems OmniConverter Unmanaged Gigabit, MM SC, RJ-45, Ethernet Fibre Switch - 4 x 10/100/1000BASE-T, 1 x 1000BASE-X, AC Power, 5 Year Warranty

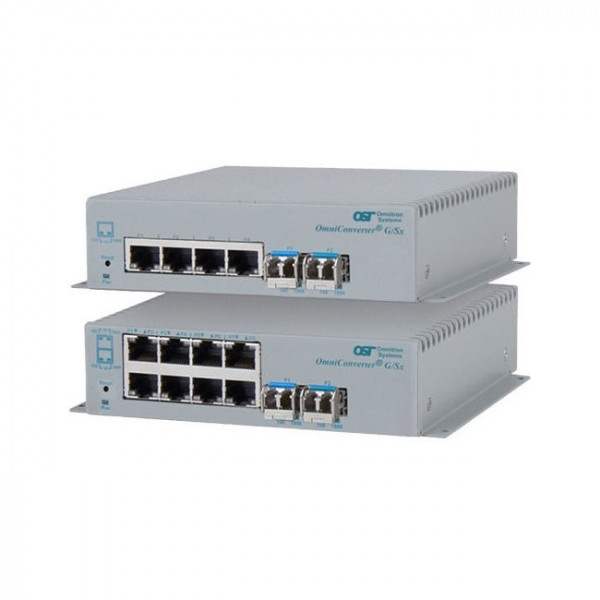

The OmniConverter G/Sx is an unmanaged compact Ethernet gigabit fibre edge switch that features one or two Gigabit fibre ports and four or eight 10/100/1000 RJ-45 copper ports. The OmniConverter G/Sx enables network distance extension with fibre cabling.

The OmniConverter G/Sx is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The OmniConverter G/Sx supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate fibre port, preventing the multicast video traffic from flooding other network ports.

Models with two fibre ports support redundant fibre uplinks for critical applications that require protection and sub 50ms restoration in the event of a fibre failure. The second fibre port may also be used to daisy-chain multiple Ethernet switches, or it may be used as another switch port.

Models with two fibre ports also support Dual Device mode that enables the G/Sx to operate as two independent and isolated Ethernet switches. In Dual Device mode, the G/Sx provides separate and independent data traffic paths between the two fibre links and four or eight RJ-45 ports.

The G/Si modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the OmniConverter for ease of identification and use.

The OmniConverter G/Sx is available with fixed ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fibre ports support multimode or single-mode and dual fibre or single-fibre with distances up to 140 km. SFP models support a variety of distances in standard and CWDM wavelengths.

The compact OmniConverter G/Sx Ethernet switches can be wall mounted or DIN-rail mounted using an optional DIN-rail mounting clip. The OmniConverter Ethernet switch models are available with DC input power via terminal connectors or external 100 to 240V AC power adapters.

Features

  • Power Adapter power source for dependable power supply
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • DIN Rail Mountable form factor for added reliability and dependability
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Twisted Pair media support for a dependable and productive connectivity
  • Quickly and easily set up a wired network with 5 networking ports
  • Effectively reduces downtime with improved network performance
Management & Protocols
ManageableNo
Network & Communication
Layer Supported2
Power Description
Power SourcePower Adapter
Interfaces/Ports
Number of Network (RJ-45) Ports4
Number of SC Ports1
Total Number of Network Ports5
SC Port TypeDuplex
Port/Expansion Slot Details4 x Gigabit Ethernet Network
Media & Performance
Network Technology1000Base-LX/LH
1000Base-T
Ethernet TechnologyGigabit Ethernet
Media Type SupportedTwisted Pair
Optical Fibre
Fibre Mode SupportedMulti-mode
Physical Characteristics
Weight (Approximate)1.10 lb
Form FactorDIN Rail Mountable
Wall Mountable
Height1.5"
Width6.3"
Depth5.2"
Miscellaneous
Additional InformationFibre Optic Wavelength: 1310nm
Maximum Distance Supported: 2km
Input Voltage: AC Powered

Input Voltage:
100 - 240VAC/50 - 60Hz
0.09A @ 120VAC (typical)

Operating Temperature Range:
Commercial: 0 to +50 deg C
Package Contents
  • OmniConverter G/Sx, 1xMM SC + 4xRJ-45, AC Powered Commercial Temp
  • User Manual
  • AC/DC Power Adapter with US Power Cord
Certifications & Standards
    • IEEE 802.3
    Compliance:
    • UL, CE, FCC Class A
    • EN 55032/24
    • CISPR 32
    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    • IEC 61000-4-6 CS: Signal: 10 V
    • IEC 61000-4-8 ( Magnetic Field)
    • IEC 61000-4-11 (General Immunity in Industrial Environments)
Country of OriginUnited States
Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorisation and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
General Information
Product TypeEthernet Switch
Manufacturer Part Number2862-6-14-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Packaged Quantity1
ManufacturerOmnitron Systems
Product Model2862-6-14-1
Product NameOmniConverter G/Sx, 1xMM SC + 4xRJ-45, AC Powered Commercial Temp
Package TypeRetail
Product LineOmniConverter
Product SeriesG/Sx
Brand NameOmnitron Systems
More Information
Manufacturer Omnitron Systems
Barcode 0800975040076
Product Series Omnitron Systems OmniConverter PoE Media Converters
Product Type Ethernet Switches
Warranty Notes Free access to 24/7/365 Omnitron Technical Support
