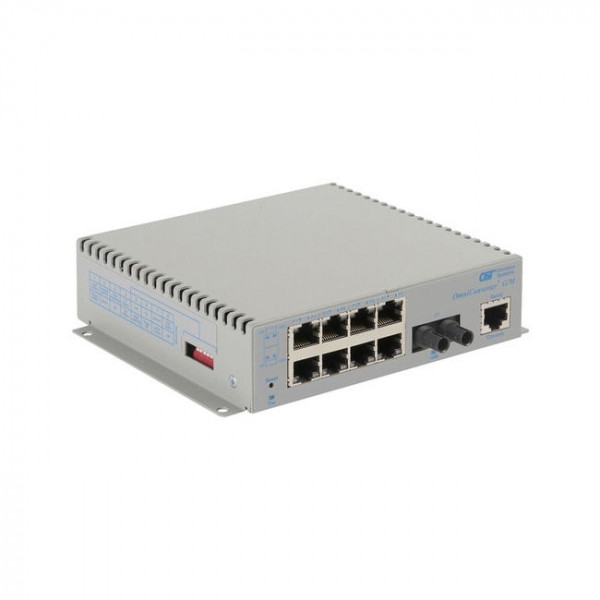

OST OmniConverter G/M ST SM 12KM 8X 10/100/1000T to 1000X US AC

SKU #2821-1-18-1
Omnitron OmniConverter Managed Gigabit, MM ST, RJ-45, Ethernet Fibre Switch - 8 x 10/100/1000BASE-T, 1 x 1000BASE-X, AC Power, 5 Year Warranty
Request Quote
Typically Ships in 15 to 20 Business Days
Part Number
2821-1-18-1

Omnitron Systems OmniConverter Managed Gigabit, MM ST, RJ-45, Ethernet Fibre Switch - 8 x 10/100/1000BASE-T, 1 x 1000BASE-X, AC Power, 5 Year Warranty

The OmniConverter G/M is a compact managed Ethernet gigabit fibre edge switch that features one or two Gigabit fibre ports and four or eight 10/100/1000 RJ-45 copper ports. The OmniConverter G/M enables network distance extension with fibre cabling.

The OmniConverter G/M is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The OmniConverter G/M supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate fibre port, preventing the multicast video traffic from flooding other network ports.

Models with two fibre ports support redundant fibre uplinks for critical applications that require protection and sub 50ms restoration in the event of a fibre failure. The second fibre port may also be used to daisy-chain multiple Ethernet switches, or it may be used as another switch port.

Models with two fibre ports also support Dual Device mode that enables the G/M to operate as two independent and isolated Ethernet switches. In Dual Device mode, the G/M provides separate and independent data traffic paths between the two fibre links and four or eight RJ-45 ports.

The G/M modes of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH or Serial Console management interfaces. The G/M supports in-band and out-of-band management. In-band management is provided by accessing the module through any of the Ethernet RJ-45 or fibre ports and supports IP-based web, Telnet, SSH and SNMPv1/v2c management interfaces. Out-of-band management is provided by accessing the serial console port. Omnitron's NetOutlook SMNP software can be used for real-time alarm reporting and monitoring of each port.

The OmniConverter G/M is available with fixed ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fibre ports support multimode or single-mode and dual fibre or single-fibre with distances up to 140 km. SFP models support a variety of distances in standard and CWDM wavelengths.

The compact OmniConverter Ethernet switches can be wall mounted or DIN-rail mounted using an optional DIN-rail mounting clip. They are available with 2- Pin DC Terminal and AC to DC 100 - 240VAC power adapters.

Features

  • Power Adapter power source for dependable power supply
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • Wall Mountable form factor for your convenience and simplicity of usage
  • Management capability allows maximum efficiency and with unrestricted control
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Optical Fibre media support ensures maximum convenience and great usability
  • Quickly and easily set up a wired network with 10 networking ports
  • Effectively reduces downtime with improved network performance
Management & Protocols
ManageableYes
Network & Communication
Layer Supported2
Power Description
Power SourcePower Adapter
Interfaces/Ports
Number of Network (RJ-45) Ports8
Management PortYes
Number of ST Ports1
Total Number of Network Ports10
ST Port TypeDuplex
Port/Expansion Slot Details8 x Gigabit Ethernet Network
General Information
Product TypeEthernet Switch
Manufacturer Part Number2821-1-18-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Packaged Quantity1
ManufacturerOmnitron Systems
Product Model2821-1-18-1
Product NameOmniConverter G/M, 1xSM ST + 8xRJ-45, AC Powered Commercial Temp
Package TypeRetail
Product LineOmniConverter
Product SeriesG/M
Brand NameOmnitron Systems
Media & Performance
Network Technology1000Base-LX
1000Base-T
Ethernet TechnologyGigabit Ethernet
Media Type SupportedTwisted Pair
Optical Fibre
Fibre Mode SupportedSingle-mode
Physical Characteristics
Weight (Approximate)1.50 lb
Form FactorWall Mountable
DIN Rail Mountable
Height1.5"
Width6.3"
Depth5.2"
Miscellaneous
Additional Information

Number of Serial Ports: 1

Fibre Optic Wavelength: 1310nm

Maximum Distance Supported: 12km

Management:

Web, Telnet, SSH, Serial Console, SNMPv1/v2

Input Voltage:

100 - 240VAC/50 - 60Hz
0.10A @ 120VAC (typical)

Operating Temperature Range:

Commercial: 0 to +50 deg C

Package Contents
  • OmniConverter G/M, 1xSM ST + 8xRJ-45, AC Powered Commercial Temp
  • User Manual
  • AC/DC Power Adapter with US Power Cord
Certifications & Standards
    • IEEE 802.3,
    • IEEE 802.1Q,
    • IEEE 802.1ad,
    • IEEE 802.1ab,
    • IEEE 802.1w,
    • RFC 5424,
    • SNTP,
    • RADIUS, TACACS+, IEEE 802.1x

    Compliance:

    • UL, CE, FCC Class A
    • EN 55032/24
    • CISPR 32
    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    • IEC 61000-4-6 CS: Signal: 10 V
    • IEC 61000-4-8 ( Magnetic Field)
    • IEC 61000-4-11 (General Immunity in Industrial Environments)
Country of OriginUnited States
Environmentally FriendlyYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
More Information
Manufacturer Omnitron Systems
Barcode 0800975039391
Product Series Omnitron Systems OmniConverter PoE Media Converters
Product Type Ethernet Switches
Warranty Notes Free access to 24/7/365 Omnitron Technical Support
