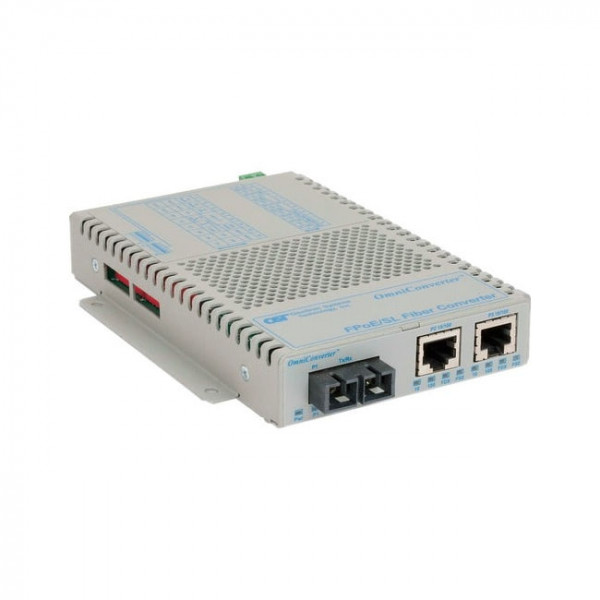

OST OmniConverter FPoE/SL 10/100 to 100FX SC SM 30KM DC Extended Temp

Omnitron Systems OmniConverter FPoE/SL 9343-1-19Z Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Single-mode - Fast Ethernet - 100Base-X, 10/100Base-T, 100Base-BX - 18.64 Mile - Power Supply - Rack-mountable, Standalone, Rail-mountable, Wall Mountable, Desktop, External

The OmniConverter FPoE/SL, FPoE/S and FPoE+/S are multiport media converters that convert 10/100BASE-T copper to 100BASE-X fibre and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.

The OmniConverter FPoE/SL is a cost-effective media converter that provides up to 15.40W PoE (IEEE 802.3af) per RJ-45 port and supports frame sizes up to 2,000 bytes.

The OmniConverter FPoE/S provides up to 15.40W PoE (IEEE 802.3af) per RJ-45 port and supports frame sizes up to 10,240 bytes.

The OmniConverter FPoE+/S provides up to 34.20W PoE+ (IEEE 802.3at) per RJ-45 port and supports frame sizes up to 10,240 bytes. The FPoE+/S powers the more demanding PDs such as outdoor PTZ (pan-tilt-zoom) cameras and multi-band, multi-stream wireless access points.

Models with two fibre ports support redundant fibre optic uplinks for critical applications that require protection and sub 50ms restoration in the event of a fibre failure. The second fibre port may also be used to cascade multiple media converters, or it may be used as another switch port.

Configurable features include link modes and a PoE power reset function that enables a PD device to be re-initialised remotely. When a problem with a PD is identified, the fibre port on a managed switch can be shut down or disconnected, enabling the PoE power reset function on the OmniConverter. The PoE power to the PD is disabled for 2 seconds when a loss of receive fibre link is detected by the OmniConverter, eliminating the need for costly truck rolls to remote PD sites.

Link modes can be configured to propagate loss-of-link faults to managed devices, immediately notifying administrators of network outages.

OmniConverter media converters support fixed-fibre connectors and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fibre types, distances and wavelengths. They support multimode and single-mode dual fibre; and single-mode single-fibre, in standard and CWDM wavelengths.

The compact standalone OmniConverter media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC power input via terminal connectors or external 100 to 240V AC power adapters.
