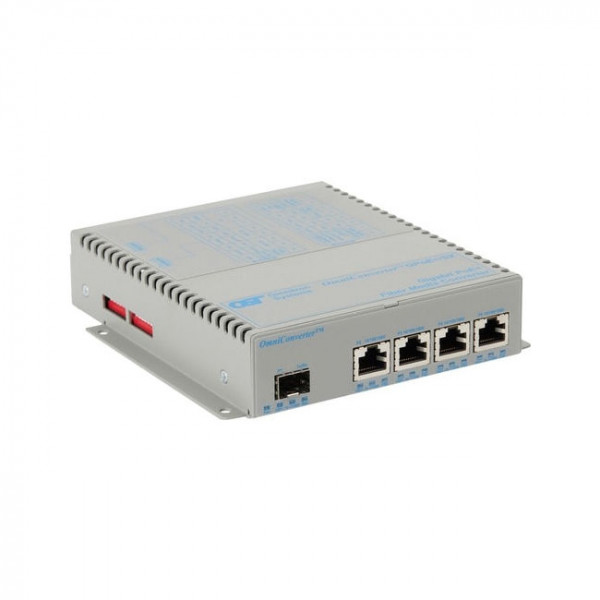

Omnitron Systems OmniConverter GPoE+/SX 4x PoE+ SFP US AC Powered - Network (RJ-45) - 4x PoE+ (RJ-45) Ports - Multi-mode, Single-mode - Gigabit Ethernet - 1000Base-SX/LX, 1000Base-BX, 1000Base-BX-D, 1000Base-LX/SX, 1000Base-BX10-U, 1000Base-BX-U, 1000Base-LX10, 1000Base-BX10-D, 1000Base-X, 1000Base-LX/LH, 1000Base-SX, ... - 1.0 x Expansion Slots - SFP - 1 x SFP Slots - Power Supply - Desktop, Wall Mountable, Standalone, Rail-mountable
The OmniConverter GPoE+/SX is a multi-port media converter that converts 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X fibre, and support Power-over-Ethernet (PoE and PoE+). OmniConverter PoE media converters provide network distance extension with fibre cabling, and function as PoE injectors providing power to four Powered Device (PDs) over standard UTP cables that carry the Ethernet data.
The GPoE+/SX provides up to 34.20W PoE+ (IEEE 802.3at) per RJ-45 port and supports frame sizes up to 10,240 bytes.
Models with two fibre ports support redundant fibre uplinks for critical applications that require protection and sub 50ms restoration in the event of a fibre failure. The second fibre port may also be used to cascade multiple media converters, or it may be used as another switch port.
Configurable features include Directed Switch Mode, MUX Mode, Dual PoE Device Mode and a PoE power reset.
When configured in Directed Switch Mode, video multicast traffic is only forwarded to the fibre uplink (Port 1), preventing the multicast video traffic from flooding other network ports.
MUX Mode allows the data traffic to be tunneled between two GPoE+/SX converters. The RJ-45 data traffic on one module will be mirrored to the corresponding RJ-45 on the other module.
The dual fibre port models can be configured in Dual PoE Device Mode. When configured, the GPoE+/SX operates as two separate PoE media converters, providing two separate fibre uplink ports to the same location.
PoE power reset enables a PD device to be re-initialised remotely. When a problem with a PD is identified, the fibre port on a managed switch can be shut down or disconnected, enabling the PoE power reset function on the OmniConverter. The PoE power to the PD is disabled for 2 seconds when a loss of receive fibre link is detected by the OmniConverter, eliminating the need for costly truck rolls to remote PD sites.
OmniConverter media converters support fixed-fibre connectors and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fibre types, distances and wavelengths. They support multimode and single-mode dual fibre; and single-mode single-fibre, in standard and CWDM wavelengths.
The compact OmniConverter media converters can be wall mounted or DIN-rail mounted using an optional mounting clip. They are available with DC input power via terminal connectors or external 100 to 240V AC power adapters.
Power Source | Power Supply |
Expansion Slot Type | SFP |
Number of SFP Slots | 1 |
Total Number of Expansion Slots | 1.0 |
USB | No |
DVI | No |
Network (RJ-45) | Yes |
Management Port | No |
Number of PoE+ (RJ-45) Ports | 4 |
Total Number of Ports | 4 |
Additional Information |
|
Package Contents |
|
Certifications & Standards |
|
Country of Origin | United States |
Environmentally Friendly | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Restriction of Hazardous Substances (RoHS) |
Network Technology | 1000Base-BX-D |
1000Base-BX-U | |
1000Base-BX10-D | |
1000Base-BX10-U | |
1000Base-LX | |
1000Base-LX/LH | |
1000Base-BX | |
1000Base-LX10 | |
1000Base-ZX | |
1000Base-X | |
1000Base-T | |
1000Base-LX/SX | |
1000Base-SX | |
1000Base-SX/LX | |
Ethernet Technology | Gigabit Ethernet |
Fibre Optic Cable Standard | 62.5/125 µm |
50/125 µm | |
9/125 µm | |
Media Type Supported | Optical Fibre |
Twisted Pair | |
Fibre Mode Supported | Single-mode |
Multi-mode | |
Fibre Optic Wavelength | 850 nm |
Weight (Approximate) | 1.10 lb |
Form Factor | Standalone |
Desktop | |
Rail-mountable | |
Wall Mountable | |
Height | 1.4" |
Width | 5" |
Depth | 6" |
Product Type | Transceiver/Media Converter |
Manufacturer Part Number | 9459-0-141 |
Manufacturer Website Address | http://www.omnitron-systems.com |
Manufacturer | Omnitron Systems |
Product Model | 9459-0-14x |
Product Name | OmniConverter GPoE+/SX 4x PoE+ SFP US AC Powered |
Package Type | Retail |
Product Line | OmniConverter |
Product Series | GPoE+/SX |
Brand Name | Omnitron Systems |
Manufacturer | Omnitron Systems |
---|---|
Barcode | 0800975046054 |
Product Series | Omnitron Systems OmniConverter PoE Media Converters |
Product Type | Media Converters |
Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
