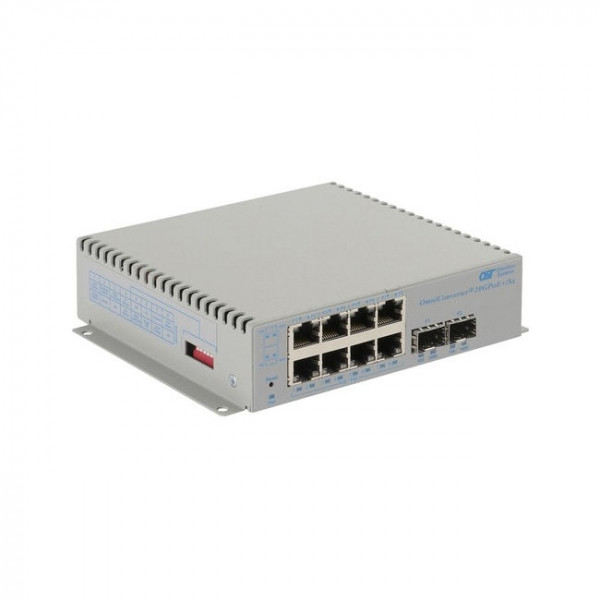

OST OmniConverter 10GPoE+/SX DC ET 2X1G/10G SFP+ to 8X 10/100/1000T

Omnitron Systems OmniConverter 10GPoE+/Sx PoE+, 2xSFP/SFP+, 8xRJ-45, 1xDC Powered Extended Temp - 10 Ports - 2 Layer Supported - Modular - 30 W PoE Budget - Optical Fibre, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable - 5 Year Limited Warranty

The OmniConverter 10GPoE+/Sx is a compact unmanaged PoE and PoE+ Ethernet switch that feature two 1/10G uplink ports eight 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports.

The OmniConverter 10GPoE+/Sx is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

The switches support Dual Device mode that enables the 10GPoE+/Sx to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10GPoE+/Sx provides separate and independent data traffic paths between each uplink port and a group of user ports.

The 10GPoE+/Sx modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the OmniConverter for ease of identification and use.

The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fibre, dual or single-fibre and standard or CWDM wavelengths.

The 10GPoE+/Sx automatically negotiate and deliver the power level required by a Powered Device (PD) partner. The 10GPoE+/Sx can deliver up to 30 Watts of power per user port.

The switches features a Remote PoE Power Reset that can be configured with a DIP-switch. This feature enables the user to remotely power-cycle and reset each PD increasing network reliability, up time and save manpower time and expense by automating the recovery of remote PD equipment.

All models can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector.
