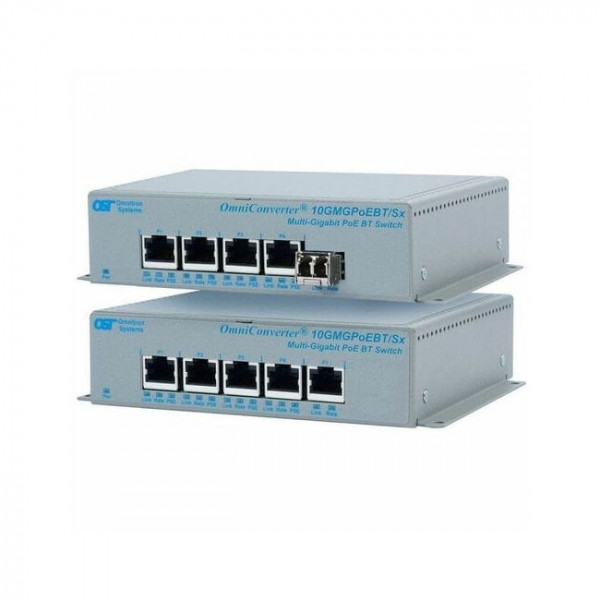

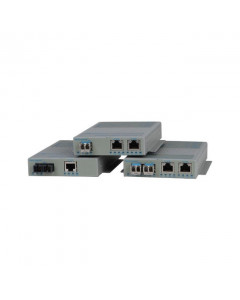

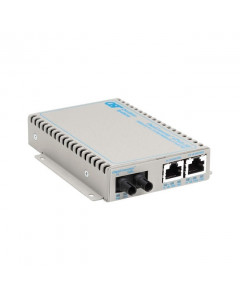

OST OmniConverter 10GMGPoEBT/SX SFP 100W 2X Multigig 2X 10/100/1000 DC

Omnitron Systems 10G Unmanaged Multi-Gigabit / Multi-Rate PoE++ (100W) Switch - 1x 1000/10GBASE-X (SFP/SFP+) + 2x 10/100/1000/2.5G/5G/10GBASE-T PoE/PSE, 2x 10/100/1000BASE-T PoE/PSE, DC Terminal Powered, 5 Year Warranty

The OmniConverter 10GMGPoEBT/Sx and 10GMGPoEBT/Sx are unmanaged multi-gigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink port with two multi-gigabit/multi-rate RJ-45 and two 10/100/1000 RJ-45 Power-over-Ethernet downlink/access ports. They support PoE, PoE+ and PoEBT up to 100 watts depending on the model.

The RJ-45 user ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps. The 10GMGPoEBT/Sx supports IEEE 802.3at (15 and 30W) and the 10GMGPoEBT/Sx supports IEEE 802.3bt (60 and 100W) per user port depending on the model.

The OmniConverter switches feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fibre transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or single-mode fibre, dual or single-fibre transceivers in standard, CWDM and DWDM wavelengths. The OmniConverter switches support frame sizes up to 10,240 bytes.

The OmniConverter PoE switches are well suited for the power and bandwidth demands imposed by IP cameras, access points and small cell devices on the market today. OmniConverter 10G switches provide high-speed network distance extension with fibre optic cabling, and function as PoE injectors.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

Configurable features include a PoE power reset function that enables a PD device to be re-initialised remotely, eliminating the need for costly truck rolls to remote PD sites. When a problem with a PD is identified, the fibre port on a managed switch can be shut down or disconnected, triggering the PoE power reset function on the OmniConverter. The PoE power to the PD is disabled for 5 seconds when a loss of receive fibre link is detected by the OmniConverter.

The compact standalone OmniConverter switches can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting clip (8251-0). They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC input power via terminal connector or an external 100 to 240VAC power adapter.
