OST OmniConverter 10GMG/SX SFP+ to 2X Multigig 2X 10/100/1000 AC

Omnitron Systems 10G Unmanaged Multi-Gigabit / Multi-Rate Ethernet Switch - 1x 1000/10GBASE-X (SFP/SFP+) + 2x 10/100/1000/2.5G/5G/10GBASE-T, 2x 10/100/1000BASE-T, AC Powered, 5 Year Warranty

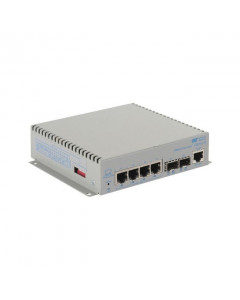

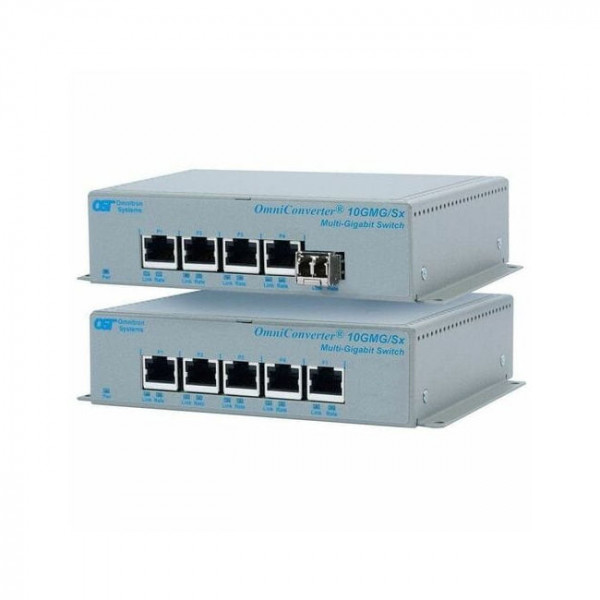

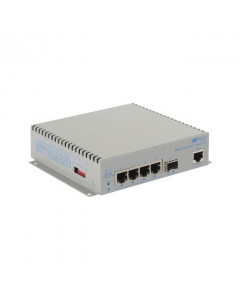

The OmniConverter 10GMG/Sx are unmanaged multigigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink port with two multi-gigabit/multi-rate RJ-45 and two 10/100/1000 RJ-45 downlink/access ports. The RJ-45 user ports support multigigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps.

The OmniConverter switches feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fibre transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or single-mode fibre, dual or single-fibre transceivers in standard, CWDM and DWDM wavelengths.

The OmniConverter switches support frame sizes up to 10,240 bytes.

The OmniConverter switches are well suited for the bandwidth demands imposed by IP cameras, access points and small cell devices on the market today. OmniConverter 10G switches provide high-speed network distance extension with fibre optic cabling.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

The compact standalone OmniConverter switches can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting clip (8251-0). They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC input power via terminal connector or an external 100 to 240VAC power adapter.
