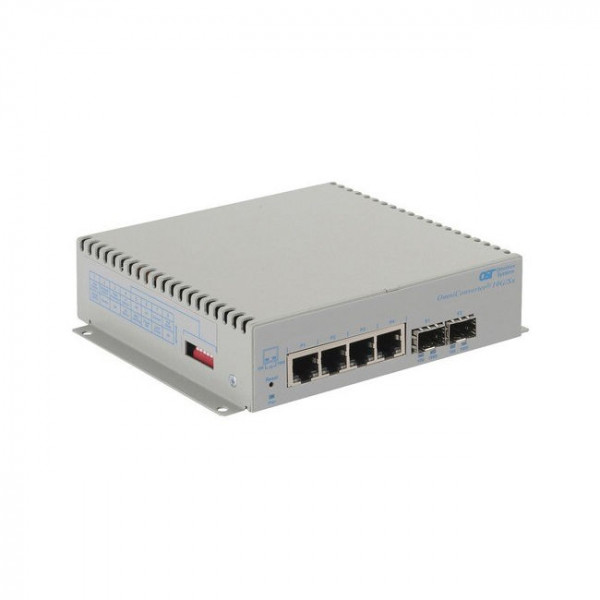

OST OmniConverter 10G/SX DC Wide 2X1G/10G SFP+ to 4X 10/100/1000T

SKU #2901-0-24-9W
Omnitron OmniConverter 10G/Sx, 2xSFP/SFP+, 4xRJ-45, 1xDC Powered Wide Temp - 6 Ports - 2 Layer Supported - Modular - Optical Fibre, Twisted Pair - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable - 5 Year Limited Warranty
Request Quote
Typically Ships in 15 to 20 Business Days
Part Number
2901-0-24-9W

Omnitron Systems OmniConverter 10G/Sx, 2xSFP/SFP+, 4xRJ-45, 1xDC Powered Wide Temp - 6 Ports - 2 Layer Supported - Modular - Optical Fibre, Twisted Pair - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable - 5 Year Limited Warranty

The OmniConverter 10G/Sx is an unmanaged compact Ethernet switch that features two 1/10G uplink ports and four or eight 10/100/1000 RJ-45 copper user ports. The OmniConverter 10G/Sx enables network distance extension with fibre cabling.

The OmniConverter 10G/Sx is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The OmniConverter 10G/Sx supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.

The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

The switches support Dual Device mode that enables the 10G/Sx to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10G/Sx provides separate and independent data traffic paths between each uplink port and a group of user ports.

The 10G/Sx modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the OmniConverter for ease of identification and use.

The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fibre, dual or single-fibre and standard or CWDM wavelengths.

The compact OmniConverter 10G/Sx Ethernet switches can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. The OmniConverter Ethernet switch models are available with 2-Pin DC Terminal or external 100-240V AC power adapters.

Features

  • DC power source for dependable power supply
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • Wall Mountable form factor for your convenience and simplicity of usage
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
  • Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
  • Optical Fibre media support for a dependable and productive connectivity
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 6 ports
  • Effectively increases available bandwidth on your network
  • Terminal Block (2 Wire) plug/connector type for a secure, hassle-free operation
Management & Protocols
ManageableNo
Network & Communication
Layer Supported2
Power Description
Power SourceDC
Plug/Connector TypeTerminal Block (2 Wire)
I/O Expansions
Expansion Slot TypeSFP+
Number of SFP+ Slots2
Total Number of Expansion Slots2.0
Interfaces/Ports
ModularYes
Uplink PortYes
Total Number of Network Ports6
Port/Expansion Slot Details4 x Gigabit Ethernet Network
2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Network Technology10GBase-ZR
10GBase-SR
10GBase-LRM
10GBase-LR
10GBase-ER
1000Base-ZX
1000Base-X
1000Base-SX
1000Base-SX/LX
1000Base-LX10
1000Base-LX/SX
1000Base-LX/LH
1000Base-LX
1000Base-BX10-U
1000Base-BX10-D
1000Base-BX-U
1000Base-BX-D
1000Base-BX
10/100/1000Base-T
Ethernet TechnologyGigabit Ethernet
10 Gigabit Ethernet
Media Type SupportedOptical Fibre
Twisted Pair
Miscellaneous
Additional InformationOperating Temperature Range: -40 to +60 deg C
Package Contents
  • OmniConverter 10G/Sx, 2xSFP/SFP+, 4xRJ-45, 1xDC Powered Wide Temp
  • User Manual
Certifications & Standards
    • IEEE 802.3,
    • IEEE 802.3ae
    Safety:
    • UL 60950-1, UL-62368-1,
    • IEC 62368:2014 /A11:2017,
    • IEC 60950-1:2005+A1:2009,
    • EN 60950-1:2006+A11:2009+A1:2010+A12:2011 +A2:2013,
    • CAN/CSA C22.2 No. 60950-1,
    • CAN/CSA C22.2 No. 62368-1-14,
    • CE Mark
    EMC: EN 55032/EN 55024 CE Emissions/Immunity

    EMI: CISPR 32, FCC 47 Part 15 Subpart B Class A

    EMS:
    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV,
    • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m,
    • IEC 61000-4-4 EFT: Power: 1 kV; Signal:0.5 kV,
    • IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV,
    • IEC 61000-4-6 CS: Signal: 3 V,
    • IEC 61000-4-8 ( Magnetic Field),
    • IEC 61000-4-11
    IP Rating: IP20 Protection
Country of OriginUnited States
Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorisation and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
Weight (Approximate)1.50 lb
Form FactorRack-mountable
DIN Rail Mountable
Shelf Mountable
Wall Mountable
Height1.5"
Width6.3"
Depth5.2"
General Information
Product TypeEthernet Switch
Manufacturer Part Number2901-0-24-9W
Manufacturer Website Addresshttp://www.omnitron-systems.com
Packaged Quantity1
ManufacturerOmnitron Systems
Product Model2901-0-24-9W
Product NameOmniConverter 10G/Sx, 2xSFP/SFP+, 4xRJ-45, 1xDC Powered Wide Temp
Package TypeRetail
Product LineOmniConverter
Product Series10G/Sx
Brand NameOmnitron Systems
More Information
Manufacturer Omnitron Systems
Barcode 0800975042247
Product Series Omnitron Systems OmniConverter PoE Media Converters
Product Type Ethernet Switches
Industry Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities
Applications HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge
Warranty Notes Free access to 24/7/365 Omnitron Technical Support
