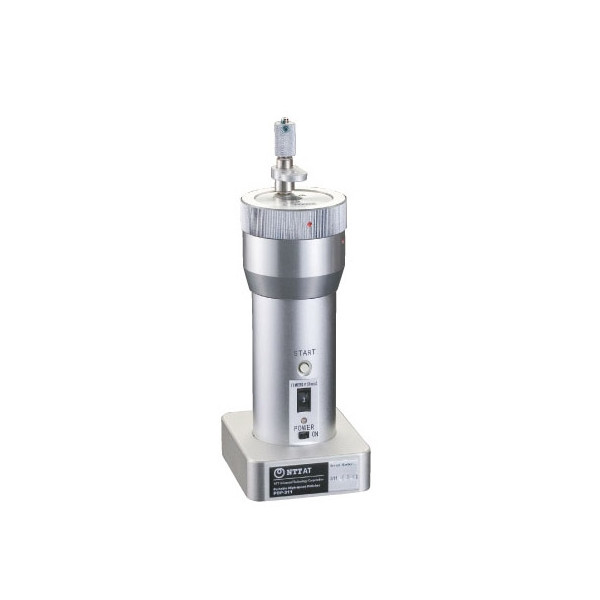

NTT-AT POP-311 Portable Optical Connector Polisher

Ships in 10 to 15 Business Days
Part Number
POP-311
High speed portable polisher. Ideal for field assembly and re-polishing of optical connectors in optical network maintenance and installation work.
Request Quote

Features

High Quality
  • High polishing quality equivalent to that of factory use polishers can be achieved.

High speed polishing
  • Polishes connectors at the high velocity of 700 revolutions per minute.
  • Easy 3-5 step processes, work can easily be done on location.
  • From adhesive removal to AdPC Polish in 150 seconds (SC connector/terminal)
  • AdPC polish by repolishing in 50 seconds (SC connector/terminal)
    • (AdPC Polish: Advanced PC polish)
    Battery operated
    • Widely accessible rechargeable nickel hydride battery (AA) or alkaline dry battery (AA) can be used.

    Overview

    Special features of the attachment exchangable type jig

    MT Connector Jig LC-Duplex Jig

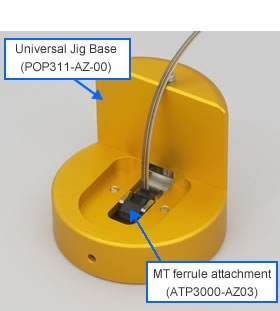

    MT Connector Jig

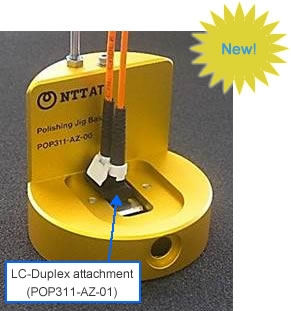

    LC-Duplex Jig

    * Attachments shown is the above photos are sold separately.

    Since the attachments are also usable in the factory use polishing machine ATP-3000, they can be used in a wide variety of polishing work such as MPO connectors, and single-core fiber connectors, and all types of capillaries and fiber polishing.

    MT Connector Polishing Process (Ferrule:12MT-PPS-SM)

    MT Connector Polishing Process POP-311 Polishing performance
    Polishing performanc
    RX(mm) >2000 ,RY(mm) >5,
    Angle(degree) ±0.2
    Fiber protrusion(μm)?1~3.5

    Suitable for Re-polishing

    When an optical fiber connector is damaged in the process of layout construction, it can be re-polished on the spot and renewed for usage.

    MT Connector Re-polishing

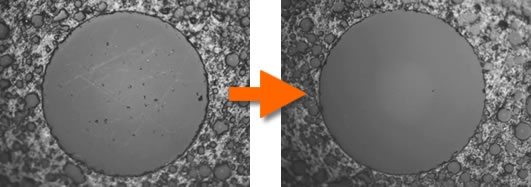

    MT Connector Re-polishing Before and After

    Before Polishing

    After 30 sec. of re-polishing

    Specifications

    Main Unit Specifications
    Application Uses Optical Connector Polishing
    (for re-polishing and new polishing processes)
    Applicable
    connector/ferrule
    SC/MU/FC/LC/MT/MTRJ-type optical connectors, glass ferrule, and custom made orders
    Polishing performance Radius of curvature 10-25mm
    Apex offset < 50μm
    Fiber undercut < 0.05μm
    Return loss > 50dB
    Weight 830g(main body without batteries)
    Dimensions 90W×75D×212H(mm)
    More Information
    Manufacturer NTT-AT
    Manufacturer Part Number POP-311
    Product Series NTT-AT POP Portable Optical Connector Polishers
    Type Polishing Machine
    Model RepairMate
    Size / Operation Handheld, Portable, Rugged
    Case Included Soft case
    Industry Aerospace and Defence, Optical Equipment Manufacturing (OEM), Mining, Off-shore and Remote
    Applications Multi-fiber MPO/MTP Testing, Optical Connector Polishing, Lapping and Polishing
    Standard Package Contains
    Warranty 1 Year
    Warranty Notes AusOptic Genuine Product Guarantee
    Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
