NorthLab ProCleave LD II Large Diameter Fiber Cleaver

SKU #CL-01-01000
Automatic fiber cleaver for Large Diameter Fibers (LDF) up to 550 μm.
Request Quote
Request current lead time
Part Number
CL-01-01000

Key Features

  • Automated cleave process for optimal cleave quality and repeatability
  • Universal fiber clamping mechanism
  • Designed for fiber cladding diameters from 125 to 550
  • Low cleave angles with very flat end faces, typical <0.5°
  • Can be powered with battery or external power supply
  • Available platforms that support Fujikura, Fitel, 3SAE, or use without fiber holders

Overview

The ProCleave LD II is an automatic and highly advanced fiber cleaver for large diameter fibers up to 550 μm. The cleaver is specifically designed for use in production lines where ease-ofuse, process speed and a high production yield is crucial. The cleaver is at the same time well suited for R&D environments.

  • ProCleave LD II generates very flat end-faces and low cleave angles (typical <0.5°) with a high repeatability.
  • To achieve optimal cleave performance and consistency all crucial parameters are automatically monitored and controlled.
  • The ProCleave LD II has an unique and universal clamping mechanism which is self adjusting to the fiber diameter applied, no external parts or accessories are required.
  • The ProCleave LD II can be programmed with four different cleave programs, easily selectable by the touch panel.
  • The ProCleave LD II is powered from an external power supply or the built in rechargeable battery.

With its small footprint and ease of use, the LFC is deal for optical work bench spaces. The LFC with fiber holder compatibility can be used with most commercially available fusion splicers and preparation tools providing a complete handling process for high yield product throughput.

More Information
Manufacturer NorthLab
Splicer: Special Applications Large Diameter fiber (Up to 500um)
Fiber Cladding Diameter 125 to 550μm
Industry Aerospace and Defence, Fiber Optic Lasers, Optical Equipment Manufacturing (OEM), Photonics, Research
Applications LDF (Large Diameter Fiber), PCF (Photonic Crystal Fiber) Splicing, Fiber Optic End Capping, Fiber Optic Lensing, Fiber Optic Tapering, OCD (Optical Combiner Development), Distributed Temperature and Strain (DTSS), Research and Development
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:NorthLab ProCleave LD II Large Diameter Fiber Cleaver
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Brochures and Specifications
Related Products

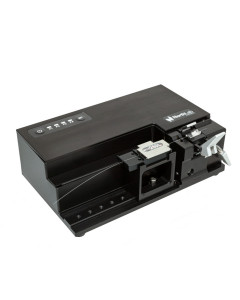

  1. NorthLab ProCleave HS Electronic Fiber Cleaver
