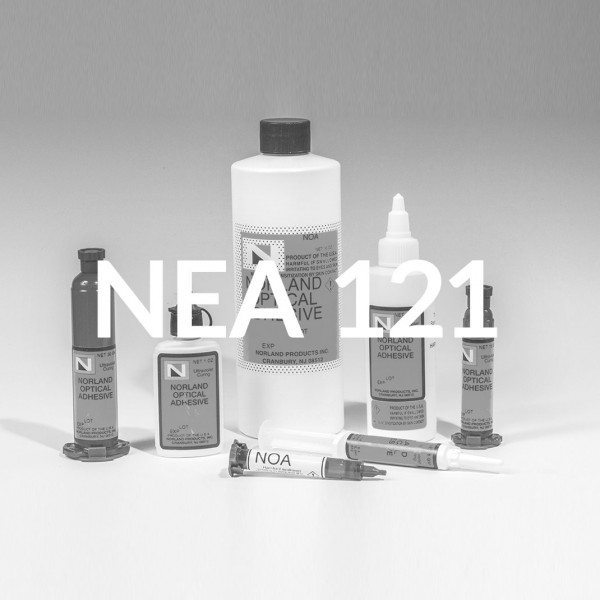

Norland Electronic Adhesive NEA 121

SKU #NEA-121
Adhesive for tacking, filling, sealing, conformal coating and tamperproofing precision components.
  • $60 material handling charge applied to Norland adhesives ordered in Australia.
  • Please note the Minimum Order Quantity (MOQ) requirements, particularly for small volume Norland items.
As low as AU$27.20 AU$29.92
Typically Ships in 10 to 15 Business Days
Part Number
NEA-121

Introduction

The unique advantage of these adhesives is that even though they cure in seconds, they are extremely stable when not exposed to ultraviolet light. Norland 121 and 123 are sensitive to the whole range of UV light from 320 to 380 nanometers with peak sensitivity around 365 nanometers. Cure time is dependent on light intensity and thickness of adhesive layer. The adhesives have been designed to be spot cured in small areas with hand held or desk top UV light sources that are safe and easy to use.

Faster cure times are possible with medium pressure vapor lamps (typically 200 watts/linear inch). These are most commonly used in conveyorized applications because the light must be shielded from the operator. These types of lights are available from companies such as American Ultraviolet or Fusion UV Curing Systems.

In addition to the UV cure, Norland 121 and 123 contain a latent heat catalyst that can quickly cure areas that do not see the ultraviolet light. The catalyst allows the adhesive to cure in 10 minutes at 125° C in a convection oven, or 3 hours at 80°C. Faster cure times are possible with infrared ovens. Temperatures less than 60°C will not appreciably activate the adhesive. The advantage of the heat cure is to bring partially cured adhesive to full cure to get the maximum physical properties of the adhesive. The heat cure is not required if all the adhesive receives proper exposure to UV light.

NEA 121 and 123 have very good adhesion to glass, metals, printed circuit boards and many plastics. Since the cure is very exothermic, the adhesive should be allowed to cool back to room temperature before adhesive testing begins. Components bonded with NEA 121 and NEA 123 can withstand temperature conditions from -150° C to 150°C.

Typical Properties of NEA 121 & NEA 123


Viscosity at 25° C 300 cps 200,000 cps
Elongation at Failure 30% 60%
Modulus of Elasticity (psi) 160,000 50,000
Tensile Strength (psi) 3,500 3,000
Hardness - Shore D 85 60
Total Mass Loss (TML) 3.14% 3.89%
Collected Volatile Condensable Material (CVCM) 0.41% 0.21%
Dielectric Constant (1 MHz) 4.04 4.00
Dissipation Factor (1 MHz) 0.045 0.044
Volume Resistivity (ohm-cm) 1.0 x 10 to the 15 power 1.0 x 10 to the 12 power
Surface Resistivity (Megohms) 10 x 10 to the 9 power 10 x 10 to the 8 power
 Dielectric Strength (volts/mil) 980 980
Arc Resistance (sec) 95 92

To remove uncured adhesive from substrate use an acetone or alcohol moistened cloth. The cured adhesive can be removed by prying the drop with a knife edge or soaking in a solvent combination of 90 parts methylene chloride and 10 part methanol.

Handling and Storage Precautions

CAUTION: Norland Electronic Adhesive 121 and 123 may cause skin irritation and prolonged contact with skin should be avoided. If contact occurs wash well with soap and water. Use in well ventilated area.

Store in a cool dark place. CAUTION:Do not freeze material. Never expose the bulk material to high heat or ultraviolet light. It can generate an extremely exothermic reaction.

More Information
Manufacturer Norland
Product Series Norland UV Curing Optical Adhesives
Industry Aerospace and Defence, Medical, Optical Equipment Manufacturing (OEM), Photonics, Research
Applications OEM (Optical Equipment Manufacturing), Assembling and disassembling multi-element systems
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
