OST Multi-Gigabit Enet Switch RJ-45 2X Multigig 2X 10/100/1000 DC

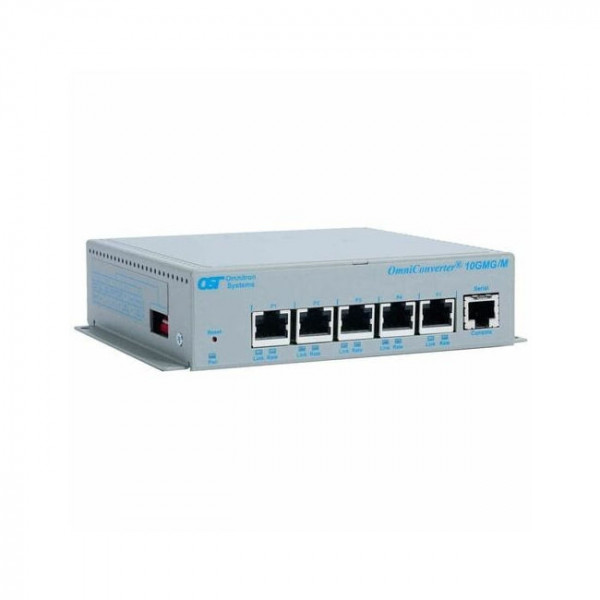

Omnitron Systems OmniConverter 10GMG/S, 5x RJ-45, 5 Year Warranty - 5 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - Wall Mountable, DIN Rail Mountable, Rack-mountable - 5 Year Limited Warranty

The OmniConverter 10GMG/M are managed multi-gigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multigigabit/multi-rate RJ-45 uplink port with two multi-gigabit/ multi-rate RJ-45 and two 10/100/1000 RJ-45 downlink/access ports.

The RJ-45 user ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps. The OmniConverter switches feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fibre transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or single-mode fibre, dual or single-fibre transceivers in standard, CWDM and DWDM wavelengths. The OmniConverter switches support frame sizes up to 10,240 bytes.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.

All models can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector.
