OST Multi-Gigabit 100W PoE++ Switch RJ-45 2X Multigig 2X 10/100/1000 AC

Omnitron Systems OmniConverter 10GMGPoEBT/Sx, 1x SFP/SFP+, 4x RJ-45 PoE/PSE, 5 Year Warranty - 5 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-T, 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Rack-mountable - 5 Year Limited Warranty

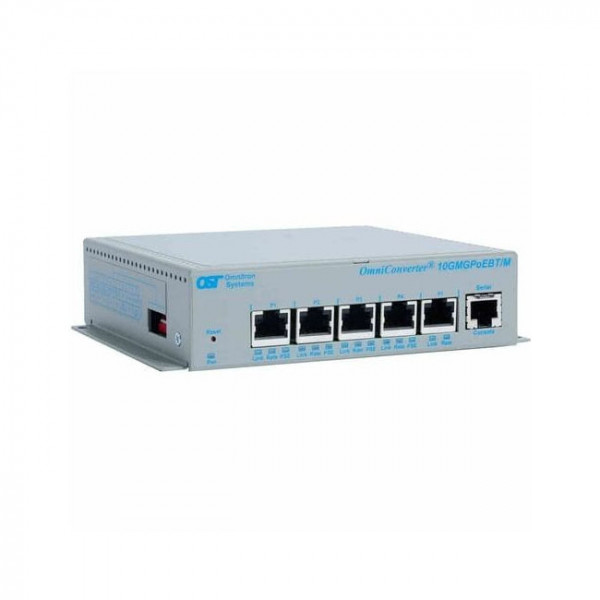

The OmniConverter 10GMGPoE+/M and 10GMGPoEBT/M are managed multi-gigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink port with two multi-gigabit/multi-rate RJ-45 and two 10/100/1000 RJ-45 Power-over-Ethernet downlink/access ports. They support PoE, PoE+ and PoEBT up to 100 watts depending on the model.

The RJ-45 user ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps. The 10GMGPoE+/M supports IEEE 802.3at (15 and 30W) and the 10GMGPoEBT/M supports EEE 802.3bt (60 and 100W) per user port depending on the model. The OmniConverter switches feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and ibre transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or single-mode fibre, dual or single-fibre transceivers in standard, CWDM and DWDM wavelengths. The OmniConverter switches support frame sizes up to 10,240 bytes.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriatecuplink port, preventing multicast traffic from flooding other network ports. The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches.

These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided. The switches feature a Remote PoE Power Reset function that enables the user to remotely power-cycle and reset each PD. They also feature a configurable heartbeat Reset function that automatically pings the attached PDs and automatically power cycles and resets the PDs when detecting a heartbeat loss. The Remote Power Reset and the Heartbeat Reset functions save time and expense by eliminating the need to dispatch manpower to remote network sites.

All models can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector.
