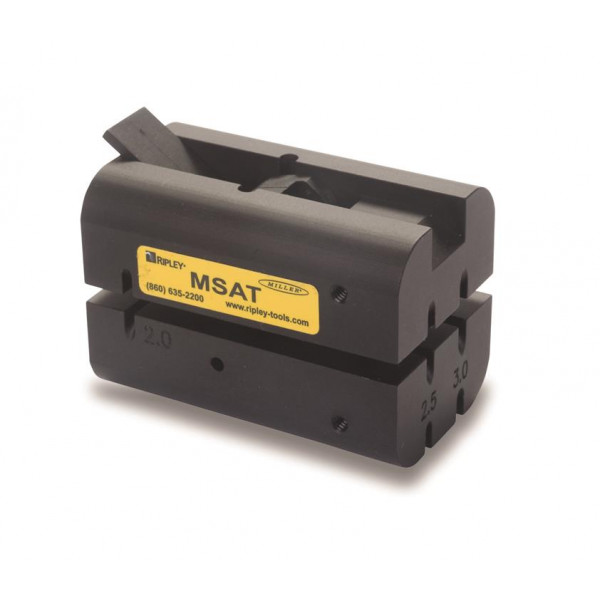

Miller MSAT Mid-Span Access Tool

MSAT

Mid-Span Access Tool

• Quickly and easily access fibers in 2, 2.5 and 3 mm buffer tubes in a mid-span location without fiber damage
• All blades precisely factory mounted in tube slitting channels with no adjustment required by the installer
• Tool design incorporates buffer tube size gages on the tool body for ease of selecting proper tube slitting channel
• Convenient spring loaded lever opens and closes the tool and lever becomes flush with the top of the tool body when closed
• For use with the following diameter buffer tubes: 2.0 mm 1.8-2.2 mm (0.071 in.- 0.086 in.) 2.5 mm 2.3-2.8 mm (0.090 in.-0.110 in.) 3.0 mm 2.8-3.2 mm (0.110 in.- 0.126 in.)

Specification

Made in the U.S.A

Length: 2.5 in. (63.5 mm)

Weight: 8oz (226.7g)
