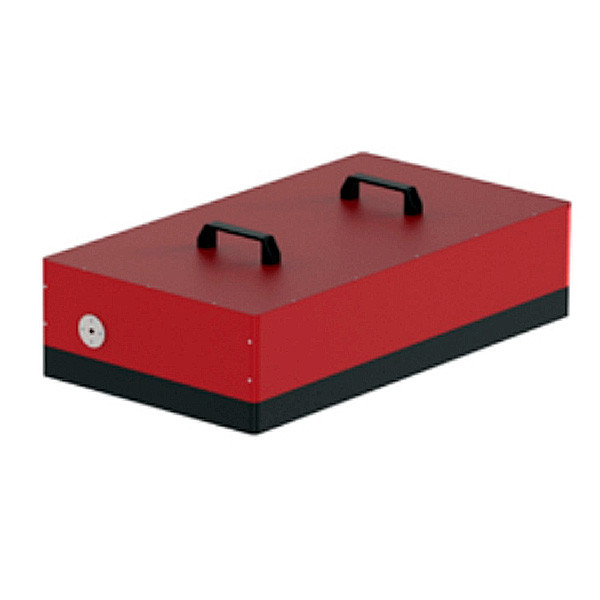

Monocrom HiEN PULS X5400-YAG Solid State Laser

SKU #X5400-YAG
High energy pulsed solid state laser solution for material processing, LIBS/RAMAN/IR Spectroscopy, OPO/DYE/Ti: Sa optical pumping, LiDAR & wind LiDAR. High pulse energies up to 1 J or more.
Request Quote
Request current lead time
Part Number
X5400-YAG

Features

  • Long lifetime
  • High reliability
  • Low thermal resistances
  • Wide storage temperature + 5ºC to + 60ºC
  • No SMILE effect



Applications

  • Material processing
  • LIBS/RAMAR/IR Spectroscopy
  • OPO/DYE/Ti: Sa Laser pumping
  • LIDAR & WIND LIDAR



Specifications


Laser parameters
  HiEN-15400 HiEN-25400 HiEN-35400 HiEN-45400 HiEN-55400
Fundamental wavelength(1)     1064 nm
Linewidth     < 100 pm
Repetition rate     1 – 500 Hz
Energy output at 1064 nm(2) < 100 mJ < 250 mJ < 500 mJ < 750 mJ < 1000 mJ
Energy output at 532 nm < 60 mJ < 150 mJ < 300 mJ < 375 mJ < 600 mJ
Energy output at 355 nm < 35 mJ < 85 mJ < 175 mJ < 260 mJ < 360 mJ
Pulse width     4 – 25 ns
Power stability < 1% @ 8 h < 1.5% @ 8 h < 2% @ 8 h < 1% @ 8 h < 1.5% @ 8 h
Pulse to pulse stability     < 5% rms
Beam parameters
Divergence > 5 mrad > 6 mrad > 7 mrad > 7 mrad > 7 mrad
Beam quality M2 > 3 > 5 > 7 > 7 > 7
Beam diameter     6 mm
Beam ellipticity     > 95%
Pointing stability     50 µrad
Polarization ratio     100:1
Jitter     < 1.5 ns
Operating parameters
Diode life-time(3)     > 109
Coolant flow < 1.5 l/min < 3.0 l/min < 4.5 l/min < 6.0 l/min < 7.5 l/min
Coolant pressure     < 3.5 bar
Coolant     90% Distilled water + 10% ethylene glycol
Warm up time     < 2 min
Operating temperature     20 – 35 deg
Additional parameters
Weight (laser head)     < 30 Kg
Weight (electronics)     < 10 Kg
Laser head dimensions (L x W x H) 600 mm 300 mm 150 mm 600 mm 450 mm 150 mm 900 mm 450 mm 150 mm 1000 mm 450 mm 150 mm 1100 mm 450 mm 150 mm
Communications     RS232 / USB
External trigger     IN / OUT
Laser class product (EN-60825)     4


1. Per pulse
2. Specifications at 25º C, at the beginning of the lifetime
3. Cooling adaptation are available Reduced life time if use in conflict to the nominal operational conditions



More Information
Manufacturer Monocrom
Product Series Monocrom HiEN High Energy Solid State Lasers
Splicer: Special Applications Large Diameter fiber (Up to 1200um)
Industry Aerospace and Defence, Fiber Optic Lasers, Optical Equipment Manufacturing (OEM), Photonics, Research, Security
Applications OEM (Optical Equipment Manufacturing), Laser Systems
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:Monocrom HiEN PULS X5400-YAG Solid State Laser
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Brochures and Specifications
In This Series

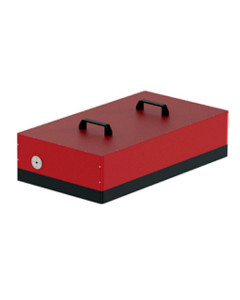

  1. Monocrom HiEN PULS X5400-YLF Solid State Laser
