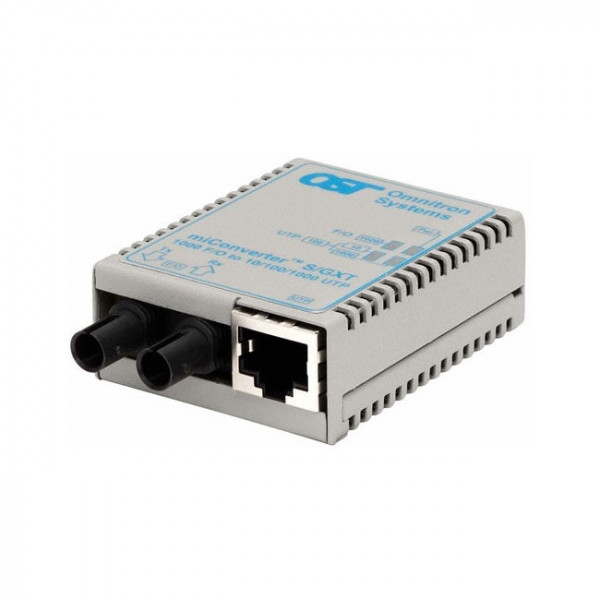

OST MiConverter S S/GXT 10/100/1000BT RJ45-1000B-SX ST/MM 850nm 220/550M
SKU #1620-0-6
Omnitron miConverter/S 10/100/1000 Gigabit Ethernet Fibre Media Converter RJ45 ST Multimode 550m - 1 x 10/100/1000BASE-T - 1 x 1000BASE-SX - USB Powered - Lifetime Warranty
Typically Ships in 15 to 20 Business Days
Part Number
1620-0-6
miConverter/S 10/100/1000 Gigabit Ethernet Fibre Media Converter RJ45 ST Multimode 550m - 1 x 10/100/1000BASE-T; 1 x 1000BASE-SX; USB Powered; Lifetime Warranty
The miConverter S/GXT Gigabit fibre to 10/100/1000BASE-T and the S/FXT Fast Ethernet fibre to 10/100/1000BASE-T media converters are ideal for mobile applications where light weight, compact size and low power are critical requirements. Weighing less than 2.5 oz. (72 grams), and about the length of a standard house key, the miConverter S-Series converters can conveniently slip into any pocket or laptop carrying case for easy portability.
These ultra-compact media converters can be USB powered, enabling fibre connectivity to locations where AC or DC power is unavailable, such as field-deployed fibre-to-the-laptop and military applications. Fibre is run directly to the laptop, where it is converted to copper UTP and connected to a laptop RJ-45 port with a standard Ethernet patch cable. Power is supplied to the media converter by the laptop"s USB port using a standard USB cable, eliminating the need for an electrical outlet.
Features
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over optical fibre cable
- Can be placed on Desktop surface for standalone installation
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
Power Description
| Input Voltage | 5 V DC |
| 5 V DC |
Media & Performance
| Maximum Distance Supported | 1804.46 ft |
| Media Type Supported | Optical Fibre |
| Twisted Pair | |
| Fibre Mode Supported | Multi-mode |
| Fibre Optic Wavelength | 850 nm |
Miscellaneous
| Additional Information |
Input Voltage: |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
Interfaces/Ports
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of ST Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
Network & Communication
| Network Technology | 1000Base-SX |
| 10/100/1000Base-T | |
| Ethernet Technology | Fast Ethernet |
| Gigabit Ethernet | |
| Ethernet |
Physical Characteristics
| Weight (Approximate) | 2.50 oz |
| Form Factor | Wall Mountable |
| External | |
| Desktop | |
| Height | 0.8" |
| Width | 2.3" |
| Depth | 1.8" |
General Information
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 1620-0-6 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 1620-0-x |
| Product Name | miConverter S/GXT ST Multimode 550m USB Powered |
| Package Type | Retail |
| Product Line | miConverter |
| Product Series | S/GXT |
| Brand Name | Omnitron Systems |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046054 |
| Product Series | Omnitron Systems miConverter Miniature Media Converters |
| Product Type | Media Converters |
| Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
