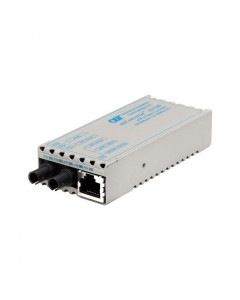

OST MiConverter 10/100 BT to 100X SFP Fibre PoE/PD 9-60VDC Ext Temp
SKU #1119D-0-19Z
Omnitron Industrial 10/100BASE-T to 100BASE-X Ethernet Media Converters with PoE Powering - 1 x Network (RJ-45) - Fast Ethernet - 100Base-X, 10/100Base-T - 1.0 x Expansion Slots - SFP - 1 x SFP Slots - PoE - Desktop, External, Standalone
Typically Ships in 15 to 20 Business Days
Part Number
1119D-0-19Z
Omnitron Systems Industrial 10/100BASE-T to 100BASE-X Ethernet Media Converters with PoE Powering - 1 x Network (RJ-45) - Fast Ethernet - 100Base-X, 10/100Base-T - 1.0 x Expansion Slots - SFP - 1 x SFP Slots - PoE - Desktop, External, Standalone
The miniature miConverter™ 10/100 PoE/D is a rate-switching 10/100 RJ-45 copper to 100BASE-X fibre industrial media converter that can be powered with Power over Ethernet (PoE) when connected to PoE switches and midspans. It can also be powered with DC power or AC power with an external power adapter. The miConverter 10/100 PoE/D provides reliable and cost-effective fibre extension in a variety of FTTx applications, including fibre to the desktop and Fibre to the Premises.The miConverter 10/100 PoE/D features fixed fibre connectors and Small Form Pluggable (SFP) transceivers. ST, SC and LC fixed fibre connectors support multimode, single-mode, and single-mode single-fibre. 100BASE-X SFP transceivers enable adaptability to different fibre types and wavelengths, including Coarse Wave Division Multiplexing (CWDM) wavelengths to increase the bandwidth capacity of fibre infrastructure.
The RJ-45 port can auto-negotiate by detecting the speed and duplex-mode of the connected device. Upon connection to the UTP device, the RJ-45 port speed adjusts to either 10Mbps or 100Mbps, and the duplex-mode adjusts to either Full-Duplex or Half-Duplex. Auto-crossover enables the connection to workstations (MDI port) or hub/switches (MDI-X port) without requiring a crossover cable.
DIP-switches enable manual configuration of the RJ-45 port speed and duplex modes, and configuration of Link Modes (fault-detection capabilities) that enable in the identification and isolation of link failures.
Diagnostic data is provided through front-panel LED indicators that assist in network installation and maintenance. The LEDs display the availability of power, port activity, link status, and the speed and duplex modes of the RJ-45 port.
The miConverter 10/100 PoE/D features power redundancy with AC or DC external power options when used with PoE powering. AC power adapter is available in US, Universal and Country/Region specific models. DC power up to 60VDC is available with a terminal connector option.

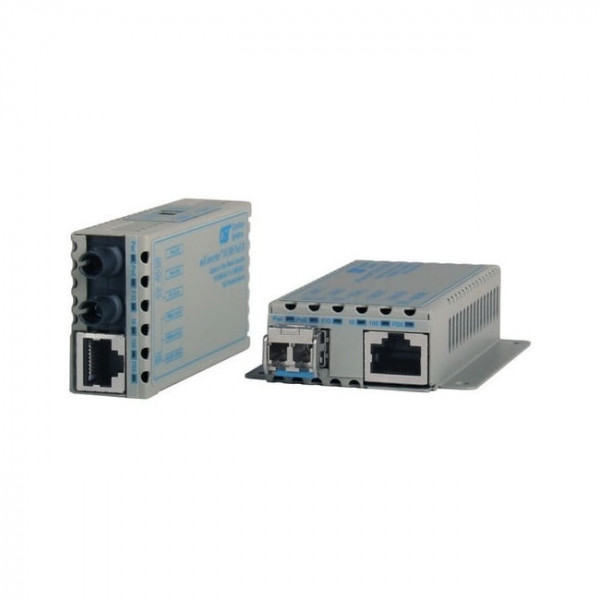

The miConverter 10/100 PoE/D is available with or without integrated mounting brackets.
Features
- Industrial Miniature Media Converter with PoE Powering
- Extended (-40º to 75ºC) and industrial* (-40º to 85ºC) operational temperature ranges
- Cost-effective, miniature 10/100BASE-T to 100BASE-X Ethernet media converter powered by PoE
- Supports 10BASE-T, 100BASE-TX, 100BASE-X and IEEE 802.3 specifications
- Compact and light weight
- Fixed fibre port supports multimode and single-mode dual fibre with ST, SC and LC connectors; and singlemode single-fibre with SC connectors
- SFP transceivers for standard or CWDM wavelengths
- RJ-45/PoE port supports Full/Half-Duplex autonegotiation and MDI/MDIX auto-crossover
- LED indicators for RJ-45 and fibre port status
- User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
Power Description
| Power Source | PoE |
Media & Performance
| Media Type Supported | Twisted Pair |
| Optical Fibre |
I/O Expansions
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1.0 |
Network & Communication
| Network Technology | 100Base-X |
| 10/100Base-T | |
| Ethernet Technology | Fast Ethernet |
Miscellaneous
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) |
Interfaces/Ports
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | No |
| Total Number of Ports | 1 |
| PoE Port Type | PD |
Physical Characteristics
| Weight (Approximate) | 4 oz |
| Form Factor | Desktop |
| External | |
| Standalone | |
| Height | 0.8" |
| Width | 1.7" |
| Depth | 4.1" |
General Information
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 1119D-0-19Z |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 1119D-0-19Z |
| Product Name | Industrial 10/100BASE-T to 100BASE-X Ethernet Media Converters with PoE Powering |
| Product Line | miConverter |
| Product Series | 10/100 PoE/D |
| Brand Name | Omnitron Systems |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046054 |
| Product Series | Omnitron Systems miConverter Miniature Media Converters |
| Product Type | Media Converters |
| Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
