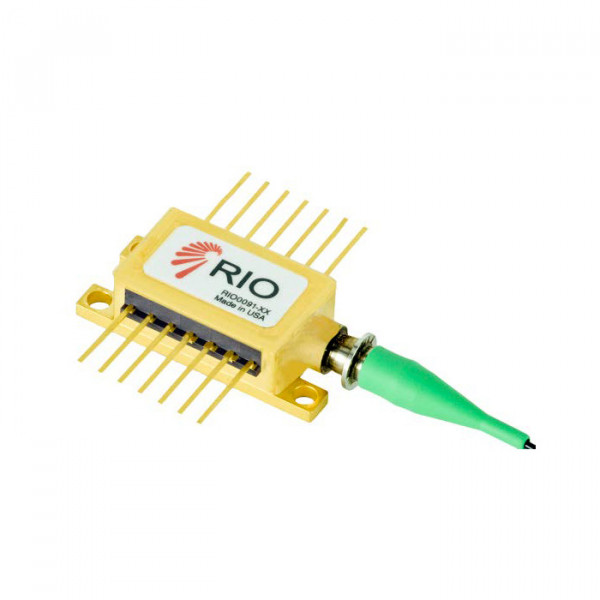

Luna RIO PLANEX 1064nm Narrow Linewidth External Cavity Laser

SKU #PLANEX-1064NM
Low phase noise external cavity laser. High performance, narrow linewidth single frequency laser capable for OEM applications suitable for volume production.
Request Quote
Request current lead time
Part Number
PLANEX-1064NM

Features

  • Single longitudinal mode
  • Center wavelength: 1064 nm
  • Narrow linewidth, long coherence length
  • Low phase noise
  • Wavelength tunability
  • Excellent SMSR
  • Excellent wavelength stability over life and temperature
  • Small form factor, 14 pin butterfly
  • Low power dissipation
  • SMF and PM fiber pigtail options
  • RoHS compliant

Applications

  • Seeding of fiber and solid state lasers
  • Second Harmonic Generation (SHG)
  • Optical Parametric Oscillators (OPOs)
  • Laser spectroscopy
  • LIDAR
  • Metrology

Introduction

The 1064 nm PLANEX™ laser product is high performance and industry-proven single frequency External Cavity Lasers (ECL) based on RIO’s proprietary planar technology – PLANEX™. The PLANEX laser consists of a gain chip and a planar lightwave circuit (PLC) that includes a Bragg grating. The coupling of these components forms a cavity with significant benefits: with up to 20 mW output power, very low RIN, low phase noise and narrow linewidth, and very low wavelength sensitivity to bias current and temperature.

The 1064 nm PLANEX’s industry-standard footprint 14-pin butterly package, mounting pattern and electrical connections make it an easy drop-in replacement for existing designs. RIO’s PLANEX lasers are the next generation of optical solutions – combining the high performance of long cavity fiber lasers with the low cost, simplicity and Telcordia GR-468 reliability qualified technology platform semiconductor lasers.

The 1064 nm PLANEX’s higher output power, low noise and narrow linewidth ideally position this semiconductor optical solution for multiple applications where absolute accuracy, lifetime reliability over demanding field conditions, and high resolution are vital, such as seeding of fiber and solid state lasers, Second harmonic Generation (SHG), Optical Parametric Oscillators (OPO), laser spectroscopy, LIDAR and other precision metrology applications.

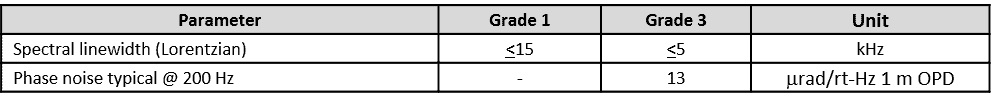

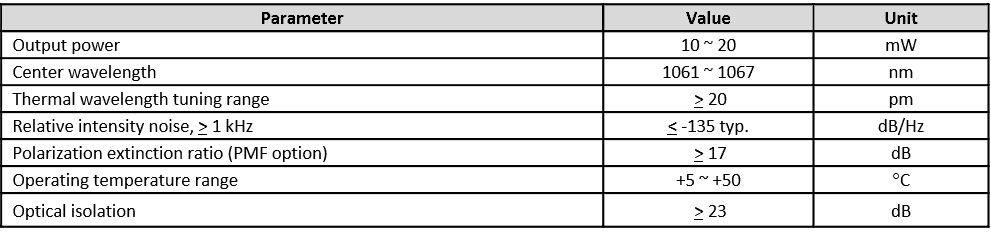

Performance

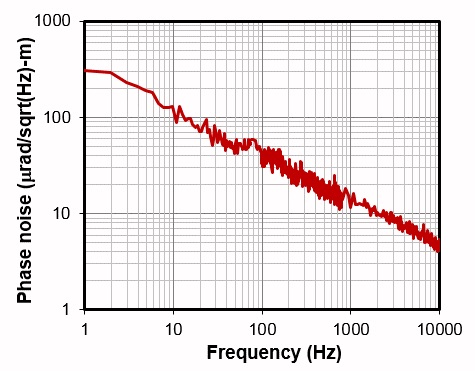

Phase Noise, 1 m OPD

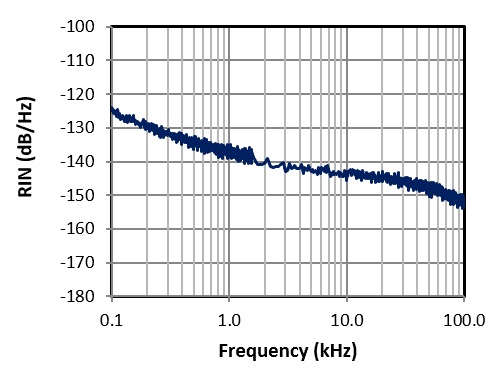

Intensity Noise

More Information
Manufacturer Luna
Product Type Laser Modules
Industry Aerospace and Defence, Fiber Optic Lasers, Optical Equipment Manufacturing (OEM), Photonics, Research
Applications Optical Parametric Oscillators (OPOs), Laser spectroscopy, LIDAR and remote sensing, Second Harmonic Generation (SHG), Seeding of fiber and solid state lasers, Metrology
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
