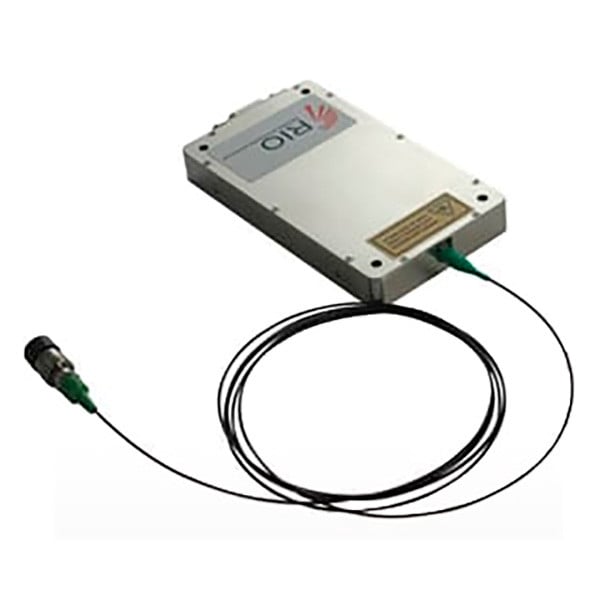

Luna RIO ORION Series 1550nm Narrow Linewidth Laser Module

Features

• Single longitudinal mode
• Ultra low phase noise and RIN
• Low sensitivity to vibration and acoustic noise
• Narrow linewidth (< 1 kHz), long coherence length
• 1530 nm-1565 nm, ITU-T DWDM wavelength or custom
• Guaranteed mode hop free operation over life and temperature
• Wavelength tunability
• Unrivaled wavelength stability over life & temperature
• Excellent SMSR
• SMF or PMF pigtail options
• 0 to 70°C operating case temperature
• Telcordia GR-468 Qualified
• RoHS Compliant
• CE and UL certified
• CW and fast frequency modulation options

Applications

• Acoustic and seismic sensing
• Defense and security
• Oil & Gas – exploration and production
• LIDAR and remote sensing
• Interferometric fiber optic sensing
• Metrology
• RF and microwave photonics
• Coherent communication

Introduction

The ORION’s packaging was designed with the customer’s need in mind: highly integrated, small form factor and self-contained module. This optical solution is positioned for reducing the development cycle time and allow for simple integration into advanced fiber optic sensing systems. External monitoring and control can be achieved via SPI, RS-232 or RS-485 standard interfaces.

The ORION’s higher output power, low noise and ultra narrow linewidth ideally position this semiconductor optical solution for multiple applications where absolute accuracy, lifetime reliability over demanding field conditions, and high resolution are vital, such as remote sensing, distributed temperature, strain, or acoustic fiber optic monitoring, high resolution spectroscopy, LIDAR and other precision metrology applications.

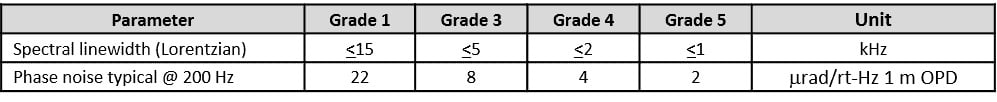

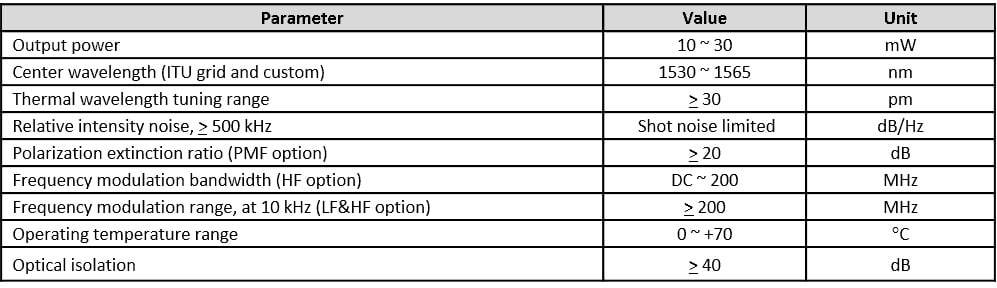

Performance

Phase Noise, 1 m OPD

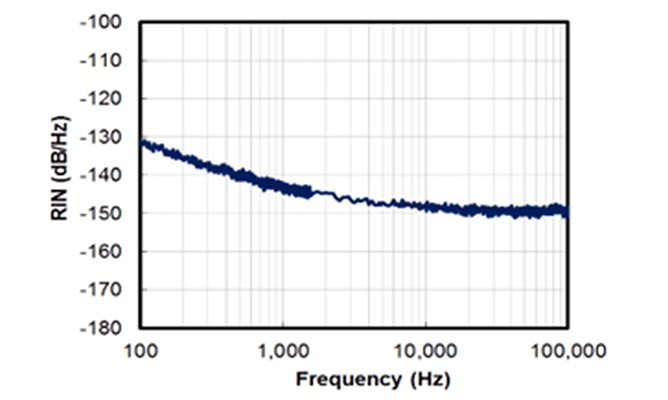

Intensity Noise
