Luna OVA 5000 LP Optical Vector Analyzer

SKU #OVA-5000-LP
Characterise IL, PDL, and PMD of passive optical components
Request Quote
Request current lead time
Part Number
OVA-5000-LP

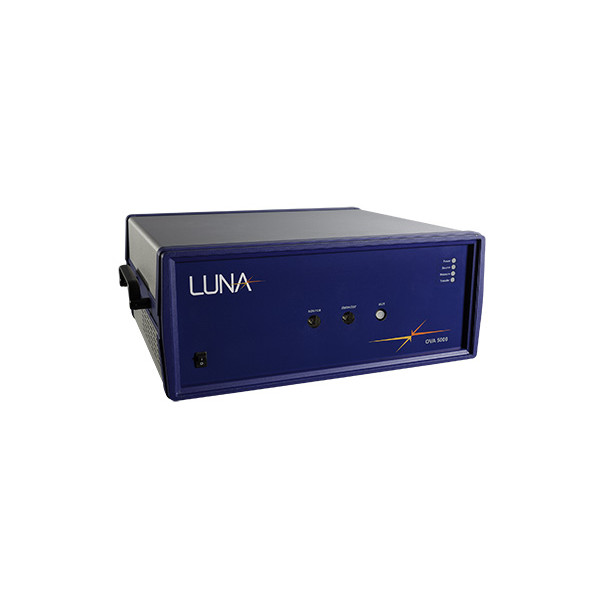

Luna OVA 5000 LP Optical Vector Analyzer

The Luna OVA 5000 LP is the fastest, most accurate and economical tool for loss and polarization measurements of modern optical networking equipment. With the OVA 5000 LP, production cost, development cost and time to market for passive optical components and modules can be reduced by up to 60%. Luna’s OVA 5000 LP characterizes passive optical components with industry-leading speed and accuracy. With a single sweep of an internal tunable laser.

Measurements:

  • Insertion Loss (IL)
  • Polarization Dependent Loss (PDL)
  • Polarization Mode Dispersion (PMD) / Second Order PMD
  • Optical Time Domain Response
  • Jones Matrix Elements

Key Features:

  • Investment Protection: With the OVA 5000 LP, you can cost effectively invest in a Luna solution today for IL/PDL/PMD, and upgrade the OVA 5000 LP as your testing needs expand
  • Industry Standard: The Jones Matrix Eigenanalysis method used by the OVA 5000 LP is the industry standard for measuring PMD
  • Industry-Leading Speed and Accuracy: The OVA 5000 LP has the highest accuracy and speed in the industry, with characterization over the full C & L bands in less than 3 seconds
  • Best in Class Dynamic Range: Recognized across the industry as the leading tool for making component and system level polarization dependent measurements with dynamic range in excess of 60 dB

For more information about Luna’s OBR 4200, see the data sheet attached.

More Information
Manufacturer Luna
Product Series Luna OVA 5000 Optical Vector Analyzers
Size / Operation Benchtop, Fixed Installation
Industry Telecommunications, Aerospace and Defence, Fiber Optic Lasers, Optical Equipment Manufacturing (OEM), Research, Mining, Off-shore and Remote
Applications System Emulation (Loss, length, time delay and reflectance), OEM (Optical Equipment Manufacturing), Advanced Testing, Inspection and Measurement Applications, Insertion Loss (IL) and Return Loss (RL) Measurements, MEMS (Microelectromechanical Systems), Optical Component Emulation, Laser Systems, Testing of high speed optical receivers, Optical Parametric Oscillators (OPOs), Optical Spectrum Analysis (OSA), Carriers, Service and Content Providers, Research and Development
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
