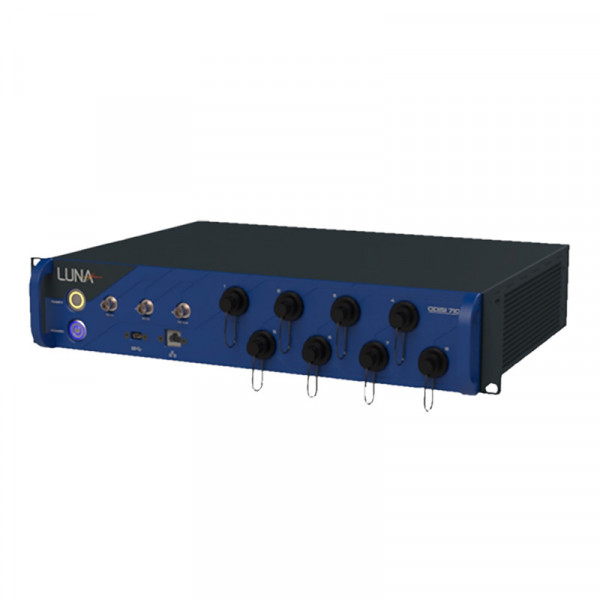

Luna ODiSI 7100 Optical Distributed Sensor Interrogators

SKU #ODiSI-7100
The ODiSI 7100 Series provides thousands of strain or temperature measurements per meter of a single high-definition fibre sensor. The ultra-high-resolution data can fully map the contour of strain for a structure under test or the continuous temperature profile of a process in real-time.
  • Available to hire: The Luna ODiSI 7108 model can be hired from AusOptic with the option of daily, weekly and monthly hire periods, training options, and technical support from our team. Need pricing? Get a quote tailored to your requirements, send us an email team@ausoptic.com.au or call our Sydney office +61 2 9424 2111.
Request Quote
Contact to confirm lead time
Part Number
ODiSI-7100

Features

  • High-definition distributed sensing — thousands of measurements with submillimeter gage pitch
  • Real-time multichannel system with each channel supporting up to 100 m of high-def sensing fiber
  • Flexible, lightweight, and easy-to-install sensors reduce time to first measurement
  • Passive, corrosion-resistant, dielectric sensors go where other sensors can’t — in bends, corners, embedded inside materials
  • Long sensor life — no drift or recalibration, cycle counts



Applications

  • Characterise strain in new materials and complex structures
  • Profile temperature in-situ to maximize the efficiency of critical processes
  • Measure two- and three-dimensional strain fields to validate FE models
  • Evaluate multi-material joining
  • Detect small cracks and defects in critical structures
  • Embed sensors within materials to create thousands of strain or temperature "smart parts"



Overview

The Luna ODiSI 7100 Series offers high-definition distributed sensing, allowing for thousands of measurements with a submillimeter gauge pitch. This system functions as a real-time multichannel solution, with each channel capable of supporting up to 100 meters of high-definition sensing fiber.

Flexible, Lightweight, and Easy to Install

The sensors are designed to be flexible, lightweight, and easy to install, significantly reducing the time needed to obtain initial measurements. Moreover, their passive, corrosion-resistant, and dielectric properties enable placement in bends, corners, and even within materials, where traditional sensors may fail. The long lifespan of the ODiSI 7100 Series sensors further enhances their value, as they do not require drift correction or recalibration, ensuring consistent and reliable data.

Extensive and Diverse Applications

The applications for the ODiSI 7100 Series are extensive and diverse. It can be utilised to assess strain in new materials and complex structures, monitor temperature in real-time to optimise critical processes and more.

An Outstanding Measurement System

The Luna ODiSI 7100 Series Optical Distributed Sensor Interrogators represent an outstanding measurement system that excels in capturing strain and temperature data. With its high-definition distributed sensing, real-time multichannel capabilities, and adaptable sensors, it serves as a vital resource across a broad spectrum of industries and applications.

Whether for strain characterisation, temperature profiling, model validation, joining evaluation, or defect detection, the ODiSI 7100 Series delivers accurate and dependable data, making it an invaluable asset in the realm of advanced materials and systems.



Specifications

The ODiSI system delivers the highest definition distributed temperature and strain sensing available, giving you maximum insight and visibility into your component or process.

Number of channels per system  Up to 8 channels
Max sensor length (per channel) Standard mode 20 m
Extended range 100 m
Max gage pitch  Up to 20 m sensors 0.65 mm (1,538 gages per meter)
100 m sensors 2.6 mm (384 gages per meter)
Strain measurement range  +/- 15,000 ue
Max standoff cable length (connects instrument to sensor)  Up to 200 m per channel
Data interface  Ethernet



For full specifications, please download the data sheet.

More Information
Manufacturer Luna
Product Series Luna ODiSI Optical Distributed Sensor Interrogators
Product Type Fiber Sensing Systems
Size / Operation Benchtop, Fixed Installation
Industry Government and Defence Communications, Aerospace and Defence, Fiber Optic Lasers, Optical Equipment Manufacturing (OEM), Research, Mining, Off-shore and Remote, Transportation, Utilities
Applications Advanced Testing, Inspection and Measurement Applications, Testing of high speed optical receivers, Mining, Oil and Gas, Distributed Fiber Optic Sensing of Strain, Temperature & Loss, Research and Development
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
