Luna OBR 4600 Optical Backscatter Reflectometer

Optical Backscatter Reflectometer™ Portable (4600)

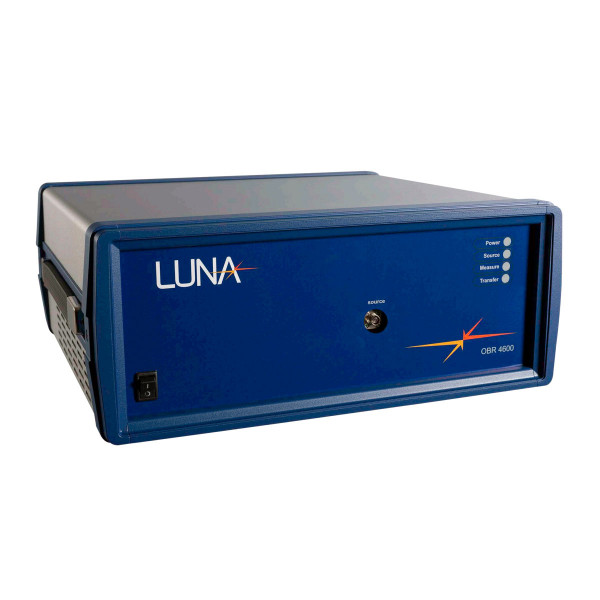

The Luna OBR 4600 is part of Luna’s award winning Optical Backscatter ReflectometerTM product line. Designed for component and short-run network testing and troubleshooting, the OBR 4600 enables ultra-high resolution reflectometry with backscatter-level sensitivity. With spatial resolution as fine as 10 microns, zero dead-zone, options for integrated temperature and strain sensing and extended device mode, the OBR 4600 offers the ultimate in fiber diagnostics.

Key Features:

• Easily locate, identify and troubleshoot macro-bends, splices, connectors and breaks

• Locate Insertion Loss points at every point in the network or assembly – eliminate cut-back

• Look inside components to evaluate each interface for RL and IL

• Measure 30 m with 10 µm resolution in less than 7 seconds

• Continuously measure a 1 m segment at up to 3 Hz

• Test and troubleshoot short-run networks (< 2 km)

• Automate pass/fail verification of fiber assemblies

• Monitor distributed temperature and strain profiles along network or inside a component or module

Measurements:

• -130 dB sensitivity

• 70 dB dynamic range

• 2 kilometer length range with no dead-zone

• < 0.05 dB insertion loss resolution

For more information about Luna’s OBR 4200, see the data sheet attached
