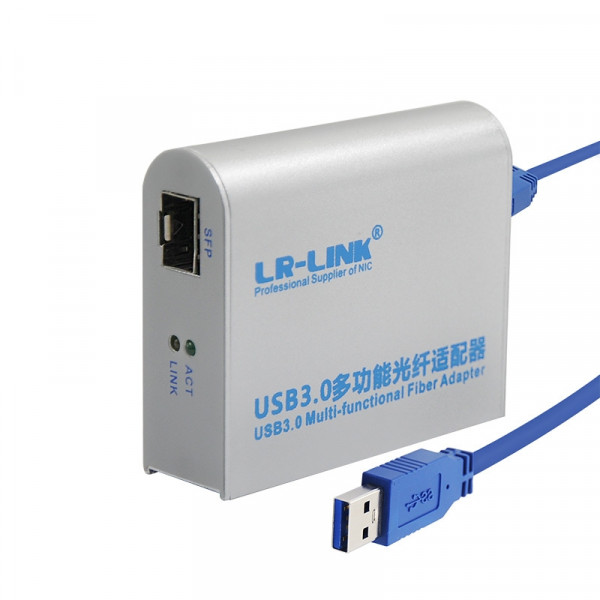

LR-LINK LREC3210PF-SFP USB3.0 Gigabit SFP Fiber Ethernet Adapter NIC
In Stock / Available for Dispatch
Part Number
446045
- Get help from our Sydney support team.
- Free shipping for online orders over $80, Australia-wide. Excludes Norland adhesives and other materials with a special shipping surcharge.
USB3.0 1000Mbps fiber optical NIC for SFP. NBN buzz tool.
AU$137.50
AU$125.00
Features
Ready to perform NOC port verification from the field.
Pair the NIC with the Cygnett 15,000mAh RapidCharge 2.4A Powerbank, available from AusOptic.
Tested to provide 3+ hours continuous power to the NIC. With a typical work-load, 1 charge translates to more than a week of productivity in the field.
Shielded aluminium chassis dissipates heat and provides enhanced reliability and stability.
Recommended over competing Winyao mini NIC products with plastic shell.
External USB interface for improved longevity. Standard USB3.0 cable included.
Competing models use a fixed USB cable which are a common weak point.
Additional features
- Fiber Port supports 1000Mbase-SX/LX standard;
- Supports USB 3.0, 2.0, and 1.1
- Supports LPM (Link Power Management)
- Supports pair swap/polarity/skew correction
- Crossover Detection & Auto-Correction
- Supports Wake-On-LAN and Wake-On-WAN Technology (see note 1)
- Supports power downnk down power saving
- Transmit/Receive on-chip buffer support
- Supports hardware CRC (Cyclic Redundancy Check) function
- Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
- Supports jumbo frame to 9K bytes
- Supports Full Duplex flow control (IEEE 802.3x)
- Fully compliant with IEEE 802.3 and IEEE 802.3u
- Supports IEEE 802.1P Layer 2 Priority Encoding
- Supports IEEE 802.1Q VLAN tagging
- Supports IEEE 802.3az-2010 (EEE)
Description
LR-link has optimised the design of the adapter. Providing a small pluggable slot that can be compatible all SFP gigabit module through exchanging SFP modules to maximise the usage needs for various networking environments.
LREC3210PF based Realtek RTL8153-CG 1000M Ethernet controller combines an IEEE 802.3u compliant Media Access Controller (MAC), USB 3.0 bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the LREC3210PF offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable.
The LREC3210PF features USB 3.0 to provide higher bandwidth and improved protocols for data exchange between the host and the device. USB 3.0 also offers more advanced power management features for energy saving.
The LREC3210PF is suitable for multiple market segments and emerging applications, such as desktop, mobile, workstation, server, communications platforms, docking station, and embedded applications.
Specifications
|
Brand |
LR-LINK |
|
Model |
LREC3210PF-SFP |
|
Controller |
RTL8153 |
|
Transmission rate per port |
1Gbps, USB3.0 |
|
Network Standard Physical Layer Interfaces |
1000BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm |
|
1000BASE-LX: 10Km at 9µm |
|
|
Jumbo Frame Support |
9K bytes |
|
Operating Temperature |
0 °C to 55 °C (32 °F to 131 °F) |
|
Compliant with |
Microsoft NDIS5, NDIS6(IPv4, IPv6, TCP, UDP)Checksum features, IEEE 802 IP Layer 2 priority encoding,IEEE 802.1Q Virtual bridged Local- Area Network (VLAN) |
|
LED Indicators |
Green blinking and LINK Yellow |
|
Power supply |
+5.0V±5% |
|
Operating System Support |
Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2 |
|
Windows XP / Vista / 7 / 8 / 8.1 / 10 |
|
|
Linux Stable Kernel version 2.6.x / 3.x / 4.x or later |
|
|
MAC OS 10.6 up to 10.13 |
| Manufacturer | LR-LINK |
|---|---|
| Manufacturer Part Number | LREC3210PF-SFP |
| Product Series | LR-LINK USB3.0 Gigabit SFP Fiber Ethernet Adapter |
| Type | Network Interface Controllers (NIC) |
| Size / Operation | Pocket-sized |
| Protection Level | Ruggedised |
| Device Connectivity via | USB |
| Industry | Installers and Contractors (OSP) |
| Applications | NBN (National Broadband Network) |
| Network Protocol | 1000BASE-LX (IEEE 802.3z), 1000BASE-SX (IEEE 802.3z) |
| Operating Temp. (Min) | 0°C |
| Operating Temp. (Max) | 55°C |
| Standard Package Contains |
|
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team |
